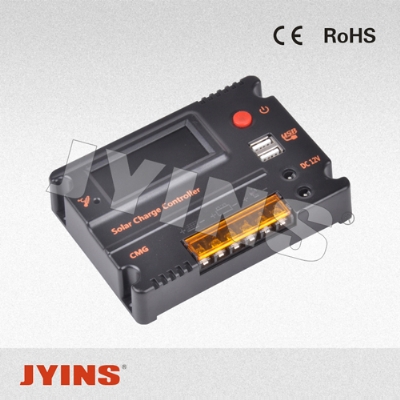

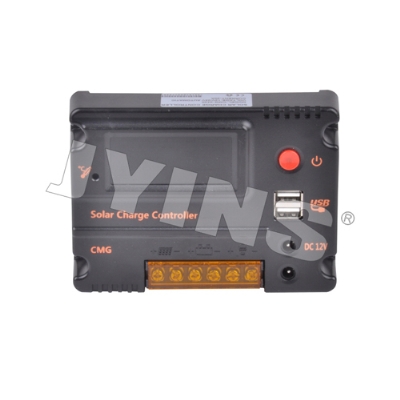

CMG2420

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 Product overview

1. With LCD to display all parameters, the LCD has rich contents, the users can intuitively know the working condition of the controller.

2. With built-in energy-saving backlight LCD, display better and more power-efficient.

3. With SMPS DC12V and USB 5V stabilized voltage output, available for DC lamp and phone charging.

4. With output switch, intelligent control, easy to operate;

5. The system power adopts switching mode power supply which can reduce the quiescent current.

5. With separated temperature detected circuit, with high precision temperature compensation function.

7. With exposed terminals, the wiring more convenient, what’s more, the CMF series with metal shell.

8. Use single-chip microcomputer control which makes the controller has the advantages of intelligent, strong adaptability, reliable function.

9. Use PWM upgrade control scheme to WPC mode, which can improve system efficiency and prolong the life span of the battery.

Installation Instructions

Open the top cover of controller and connect the wire with terminals as the diagram on the top cover of it.



1.Connect the “+”, “-” Poles of the battery to the corresponding ports of controller (the third and the fourth one from left).



2.Connect the “+”, “-” poles of the solar panel to the corresponding ports of controller (the first and the second one from left).



3. Connect the “+”, “-” poles of the load to the corresponding ports of controller (the fifth and the sixth one from left).

Note: If there is connection error, it may damage your controller.

Technical Data

Model

CMG-2405

CMF-2405

CMG-2410

CMF-2410

CMG-2415

CMF-2415

CMG-2420

CMF-2420

Rated charge current

5A

10A

15A

20A

Rated discharge current

5A

10A

15A

20A

USB output voltage

5V

Total USB output current

3A

DC output voltage

12V (only CMG)

Total DC output current

2A (only CMG)

Over load, short circuit protection

1.5 times by rated current

Short circuit recovery time

10s

Open circuit voltage of solar panel

40V

No load loss

0.05W

Over voltage protection

15V; ×2/24V

Float charge voltage

14V; ×2/24V

Discharge recovery voltage

12V; ×2/24V

Over discharge voltage

10.5V; ×2/24V

Control mode

                   software intelligent control

Working temperature

-35℃+55℃



Model

CMG

CMF

DimensionL×W×H

135*100*30(mm)

201.6*108*37.1(mm)

Weight

275g

560g
