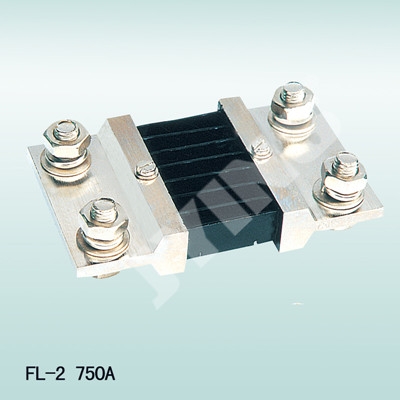

FL-2 750A

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

technical parameters

Applicable standards:
  GB/T 7676.1~9-1998《Direct instructions to simulate electrical measurement instruments and accessories》
  GB/T5729-94《Electronic equipment with fixed resistors》
  GJB/T360A-96《Electronic and electronic components and test methods》
  GB2423《Electrical and electronic products, environmental test procedures》
● rated current(A):5 10 15 20 25 30 50 75 100 150 200 250 300 400 500 600 750 1k 1.5k 2k 2.5k 3k 4k 5k 6k 7.5k 10k.。
● accuracy class:0.5 degree(≤4kA);1.0 degree(5k~1kA).
● rated pressure drop:standard value is 75mV,user defined is  45mV、50mV、60mV、100mV or other.
● overloading performance: the rated current is 120%,Continuous 2h.
● load fever :after the temperature tends to stable ,50A below ≤80℃ 50A above≤120℃。
● mechanical strength properties:can withstand the acceleration is 70 m/s , impact frequency 80 ~ 120 times /6h  of transportation shock.
● environmental conditions:-40~+60℃,relatively humidity≤95%(35℃)。
