Feature：

● 170～264V AC input

●Compact size, light weight, high efficiency

●Short-circuit and overload and overpressure protection

● Inner DC fan forced-air cooling

● comply with IP33 class

● 100% full-load burning test

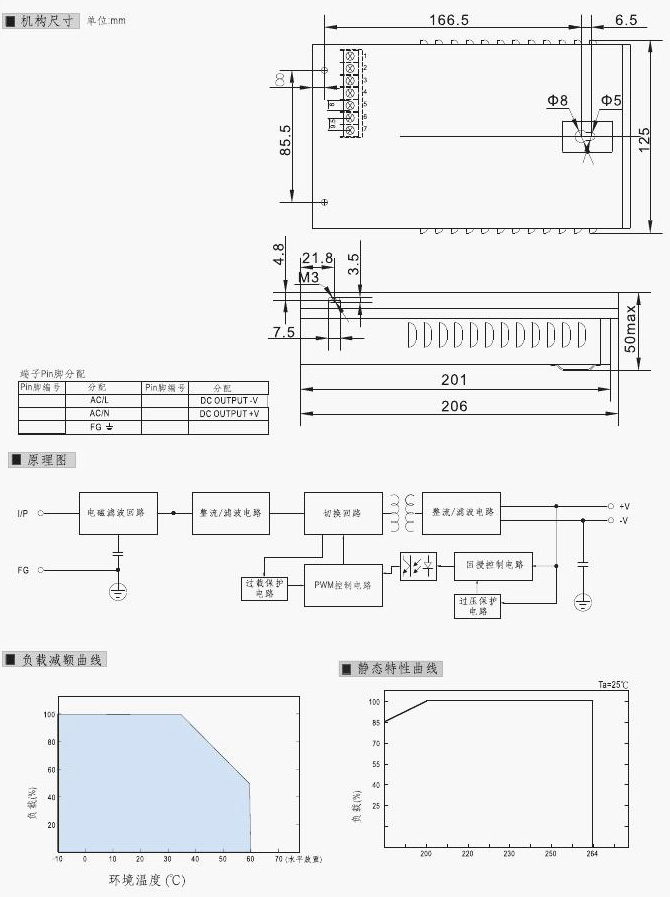

Measurement：206×125×50mm
● Two years quality warranty

Specification IP33

Model

FS-200-12

FS-200-24

FS-200-36

Output

DC output voltage

12V

24V

36V

Output voltage error

±1%

±1%

±1%

Rated output current

16.6A

8.3A

5.5A

Output current range

0～16.6A

0～8.3A

0～5.5A

Output power

200W

200W

198W

Wave and noise

150mVp-p

150mVp-p

200mVp-p

Set up, rise, hold up time

700ms,30ms,24ms/230VAC

Input

Input voltage range

170～264VAC 47～63Hz，235～373VDC

AC input current

2.5A/230VAC

Efficiency

82%

84%

85%

Impulse current

Cold-start current 45A/230VAC

Leakage current

＜3.5mA/240VAC

Protection

Feature

Overload protection

Rated output power 105%～135% set overload protection

Protection type：pulsing hiccup shut down overload abnormal condition. auto recovery

Overpressure protection

15～17V

30～32V

44～46V

Protection type：pulsing hiccup shut down abnormal condition. auto recovery

Condition

Working temperature and humidity

-10℃～+60℃;20%～90%RH (Reference derating curve)

Store temperature and humidity

-20℃～+85℃;10%～95%RH (No Condensation)

shock resistance

10～500Hz，2G 10min./1cycle，period for 60 min，each axes

Safety

Withstand voltage

Output and input interval：1.5KVAC Input enclosure：1.5KVAC Output enclosure：0.5KVAC

Isolation resistance

Output and input interval,Input and Output enclosure：100M Ohms/500VDC

Meet standards

Safety standards

Meet UL1012 IP33

EMC standards

Meet EN55022，CLASSA

Others

Weight

0.9kg 206*125*50（L*W*H）

packing

0.9kg/20pcs/19kg

Notes：

1. The testing condition for the parameter above is:230VAC input, rated load,25℃.

2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&47uF capacitor short-circuit for interrupting

3. Error,include the setting error, current regulation and voltage regulation
