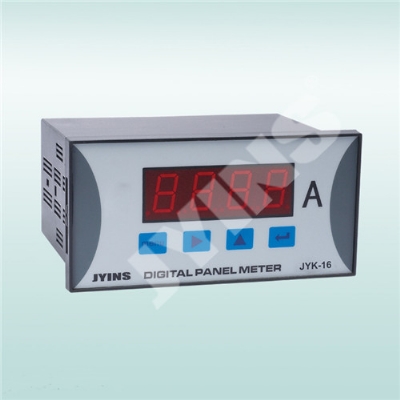

JYK-16-A

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download















Model and meaning

technonical parameters

AC voltage measuring range

direct imput                                        AC  600V、199.9V、19.99V、1.999V

imput by voltage transformer           can according to customer's requirement

AC current measuring range

direct imput                                     5A(2.000A、200.0mA,can according to customer's requirement)

imput by current transformer         (X∶5A)10A、15A、20A、50A、100A、150A、200A、500A、1000A、1500A、2000A、2500A

DC voltage measuring range

 direct imput                                    DC  600V、199.9V、19.99V、1.999V,(can according to customer's requirement)

DC current measuring range

imput by shunt                              (X∶75mV)10A、15A、20A、50A、100A、150 200A、500A、1000A、1500A、2000A、2500A

direct imput                                    can according to customer's requirement

1、power supply:AC220±10%                                           2、rectifier circuit:sine wave average detection,show RMS
3、accuracy:≤imput full scale's 0.5%±2                        4、sampling rate :about 2.5 times/s
5、display: 3.5 LED(1999)                                            6、temperature:0~40℃
7、power:≤6VA
8、maxi imput:maxi imput:voltmeter:600V(AC voltmeter imput not more than 600V)
              AC ammeter:5A;  DC ammeter:2000A/75mV

dimensions:80mm(H)×80mm(W) embeded depth:82mm(D)
opening size:76(H)×76(W)mm
