JY5135

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

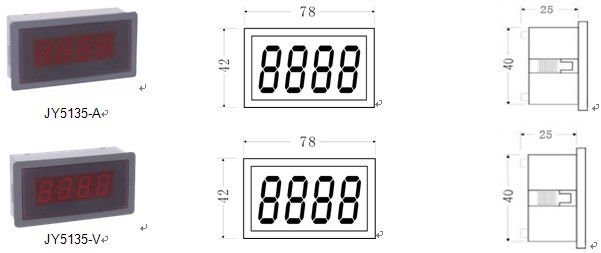

Model and meaning:





Product parameters:

Power Supply: DC: 5V, or AC: 7-12V, or AC: 120V-500Vmeasurement display     Frequency range: 50HZ±10% Output voltage: 200mv or 600V Output current: 1A or 5A (user specified) Range expansion: with shunt or transformer Power consumption: ≤1.5VA Accuracy: 0.2%±3 characters LED: highlight 0.56 display, one second’s data update Over range indication: 1 or -1 Display range: 0-1.999 Overload: for continuous 1.2 times, and for instantaneous: voltage 2 times/5S, current 5 times/5S. Isolation voltage: 2KV/50HZ/1min Insulation resistance: ≥100MΩ Average working time without breakdown: ≥5000H Working conditions: temperature: -25~55; relative humidity: ≤93% with no corrosive gas Altitude:2500M Time aging: all the products have been time-aged, so that it can stably work in a long-term to reduce the impact of external environment on the meter, offering users a satisfactory product.

Note:

1. Should be used in the temperature range: -25~55, humidity: ≤80%, to prevent undesirable phenomena caused by temperature changes.

2. Take care of vibration and shock

3. Do not use it in places with dust, gas and chemicals harmful for electrical products.

4. If the abnormal voltage is caused by the magnetic field, high frequency devices, high voltage spark, lightning and etc, please use the external power line filter or non-linear resistors to interfere and absorb the circuit.

5. The signal input line should be as short as possible, and protective shielding wire should be used in places where there may be interfering signals. It is recommended to use twister pair in general conditions.

Wiring diagram:


Note: If the instrument case and is inconsistent on the wiring diagram, please prevail on the instrument housing

Product overview:

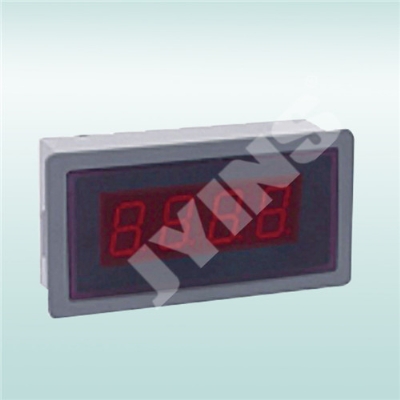

The series of JY5135 panel meter is three and a half digital voltmeter and ammeter which has a high performance, and it has high accuracy, good stability, clear display and sophisticated technology. It has a plastic side frame of push-in self-locking structure, exquisite and elegant, with a beautiful appearance and easy installation. There is position for installing range expansion unit and position for back-inset socket on the printed circuit board of the header.
