Model and meaning




Product Description :

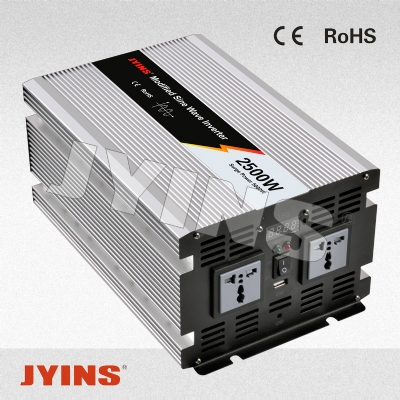

JYINS modified sine wave inverters is one of the most popular power inverter series since the beginning. We produce the power range from 200W to 5000W recently. JYINS 2.5KW inverter It convert 12V/24V/48VDC to 100-120V/220-240VAC, you can power for your electric appliances which rated power less 2000W continuously. The optional USB output port offer one more choise for user. It can charge for some digital equipments as you want.

Product Features:
·Compact case design, slim and high efficiency
·It designed to give you quality power ,ease of use, and reliability
·Low battery alarm : alerts you if the battery has become dicharged to 11Volts or lower.
· Low battery voltage shutdown : shuts the inverter down automatically if the battery voltage drops below 10.5volts. it protects the battery from being completely discharged.
·High battery voltage shutdown : shuts the inverter down automatically if the input voltage rises to 15volts or more.
·Overload shutdown: shuts the inverter down automatically if a short cicuit is detected in the circuity connected to the inverter’s output, or if the loads connected to the inverter exceed the inverter’s operating limits
· Over temperature shutdown : shuts the inverter down automatically if its internal temperature rises above an unacceptable level.
·The modified sine wave output waveform suitable for many electronic loads.

Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Earth leakage protection

Product parameters

 Model JYM-2.5K-1 JYM-2.5K-1 JYM-2.5K-1 JYM-2.5K-2 JYM-2.5K-2 JYM-2.5K-2
 Rated power 2500W
 Peak power 5000W
 Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
 Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
 Unload current less than 0.8A 0.5A 0.2A 0.8A 0.5A 0.2A
 Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
 Output waveform Modified Sine Wave
 USB port 5V 1A
 Max.efficiency 90%
 Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
 Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
 Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
 Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
 Low voltage recover 12.3±0.5V 24±0.5V 48±1V 12.3±0.5V 24±0.5V 48±1V
 Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
 Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
 Working temperature -10°- +50°
 Storage temperature -30°- +70°
 Dimension(mm) 298x180x128mm
 Packing(mm) 385x245x200mm
 Net./gross weight(g) 4450/5350g
 QTY/Ctn 4Pcs
 Meas./Ctn(mm) 500x400x415mm
 Gross weight/Ctn(g) 21400g
 Warranty 1 years
 Configuration Standard
 Cooling method Intelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
