Model and meaning




Product Description :

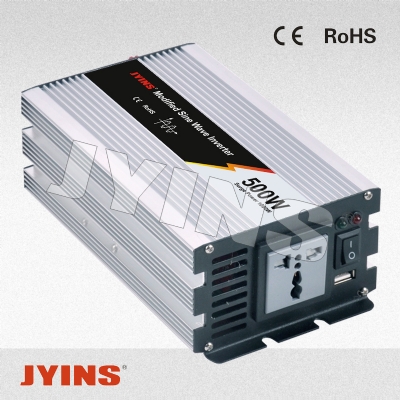

JYINS modified sine wave inverters is one of the most popular power inverter series since the beginning. We produce the power range from 200W to 5000W recently. JYINS 500W inverter It convert 12V/24VDC to 100-120V/220-240V AC, you can power for your electric appliances which rated power less 500W continuously. There is DC cable with cigarette lighter plug and the DC cable clips included in packing, you can use in your car by plug into cigarette lighter socket or directly with batteries. The optional USB output port offer one more choise for user. It can charge for some digital equipments as you want.
Product Features:
·Anodized alluminum case provides durability & max heat dissipation
·DC cigarette lighter accessory plug and heavy –duty cable clamps for high-output direct battery connections both included.
·Automatic restart function.
·USB output port : 5V500mA (optional )
··ON/OFF switch control the inverter by hand
·The inverter is compact , light weight and easy to operate.
·Loads can be powered directly from the AC outlets.
·The inverter is equipped with numerous protection features to guarantee safe and trouble-free
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected

Product parameters


 Model JYM-500-1 JYM-500-1 JYM-500-1 JYM-500-2 JYM-500-2 JYM-500-2
 Rated power 500W
 Peak power 1000W
 Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
 Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
 Unload current less than 0.3A 0.1A 0.1A 0.3A 0.1A 0.1A
 Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
 Output waveform Modified Sine Wave
 USB port 5V 1A
 Max.efficiency 90%
 Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
 Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
 Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
 Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
 Low voltage recover 12.3±0.5V 24±0.5V 48±1V 12.3±0.5V 24±0.5V 48±1V
 Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
 Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
 Working temperature -10°- +50°
 Storage temperature -30°- +70°
 Dimension(mm) 225x112x67mm
 Packing(mm) 280x170x105mm
 Net./gross weight(g) 1000/1350g
 QTY/Ctn 20Pcs
 Meas./Ctn(mm) 630x535x335mm
 Gross weight/Ctn(g) 27000g
 Warranty 1 years
 Configuration Standard
 Cooling method Intelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
