Model and meaning




Products Description :

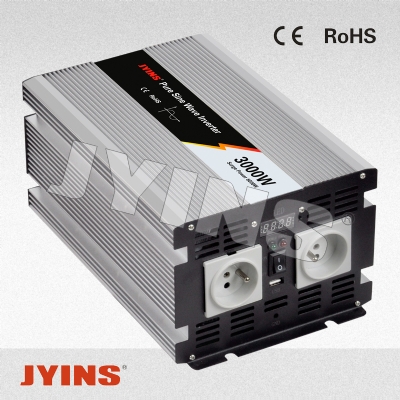

JYINS pure sine wave inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect JYINS 3000W pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical to, and in some cases better than the power supplied by your utility. And there is a remote control function and an ON/OFF remote switch with 5m communication wire is optional.
Products Features:
·Input & Output fully isolated.
·The remote control function and 5m wire with switcher optional.
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grouding earth protection: There is grounding terminal in front of panel, you can grounding the inverter for more safety concern.
·Soft start : smooth start-up of the appliances.
·Pure sine wave output waveform : clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion : below 3%
·Two LED indicators on the front panel shows the working and failure state.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grouning earth protection

Product parameters

 Model JYP-3K-1 JYP-3K-1 JYP-3K-1 JYP-3K-2 JYP-3K-2 JYP-3K-2
 Rated power 3000W
 Peak power 6000W
 Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
 Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
 Unload current less than 1.3A 0.8A 0.6A 1.3A 0.8A 0.6A
 Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
 Output waveform Pure Sine Wave
 Waveform distortion THD<3%(Linear load)
 USB port 5V 1A
 Max.efficiency 90%
 Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
 Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
 Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
 Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
 Low voltage recover 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±1V
 Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
 Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
 Working temperature -10°- +50°
 Storage temperature -30°- +70°
 Dimension(mm) 396x180x128mm
 Packing(mm) 475x245x195mm
 Net./gross weight(g) 5580/6710g
 QTY/Ctn 4 Pcs
 Meas./Ctn(mm) 540x545x445mm
 Gross weight/Ctn(g) 26840g
 Warranty 1 years
 Configuration Standard
 Cooling method Intelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
