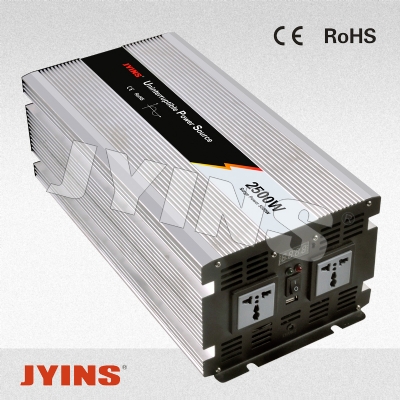

JYPU-2500W

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

Model and meaning




Products Description:
JYINS UPS series inverter with charger acts as a charger, an inverter and an off-line UPS at the same time. Enhanced by transit technology will ensure your appliances operating continuously while going out of household power supply. It can select DC or AC input fully automatically. Short s less 10 millisecond transfer time between two inputs specially protect your system from possiblity of data lost.
Products Function :
·Ultra-Fast Transfer Relay: reduce transfer time between bypass mode and inverter mode, reduce possiblity of voltage drop.
·L.I.T: Low interference technology
·Universal protection circuit : over load, long life for battery , earth fault, short circuit, over temperature, soft start
·Turbo cooling : Keep the inverter surface cool and higher efficiency
·High Efficiet :Wide-range high efficient circuit maximize the operating time and more energy saving
·Automatic 3 stage internal battery charger
·U.P.S : Uninterrupitable Power Source
·Decide your own AC backup time by choosing different batteries!
·USB port : 5V 500mA
Protection Functions :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Earth leakage protection

Product parameters

 Model JYPU-2.5K-1 JYPU-2.5K-1 JYPU-2.5K-2 JYPU-2.5K-2
 Rated power 2500W
 Peak power 5000W
 Input voltage DC12V DC24V DC12V DC24V
 Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
 Unload current less than 1.3A 0.8A 1.3A 0.8A
 Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
 Output waveform Pure Sine Wave
 Waveform distortion THD<3%(Linear load)
 USB port 5V 1A
 Max.efficiency 90%
 Input current 15A
 Input voltage range 10-15.5V 20-31V 10-15.5V 20-31V
 Low voltage alarm 10.5±0.5V 21±0.5V 10.5±0.5V 21±0.5V
 Low voltage protection 10±0.5V 20±0.5V 10±0.5V 20±0.5V
 Over voltage protection 15.5±0.5V 31±0.5V 15.5±0.5V 31±0.5V
 Low voltage recover 13±0.5V 24±0.5V 13±0.5V 24±0.5V
 Over voltage recover 14.8V±0.5V 29.5V±0.5V 14.8V±0.5V 29.5V±0.5V
 Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
 Working temperature -10°- +50°
 Storage temperature -30°- +70°
 Dimension(mm) 396x180x128mm
 Packing(mm) 400x245x200mm
 Net./gross weight(g) 6080/7385g
 QTY/Ctn 4 Pcs
 Meas./Ctn(mm) 500x400x415mm
 Gross weight/Ctn(g) 29540g
 Warranty 1 years
 Configuration Standard
 Cooling method Intelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
