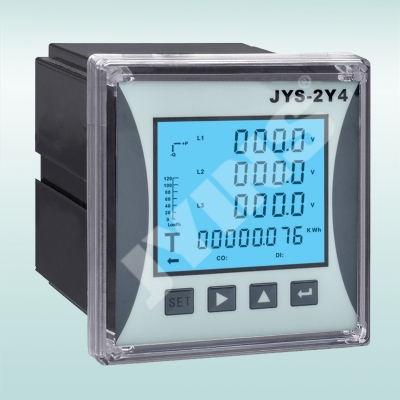

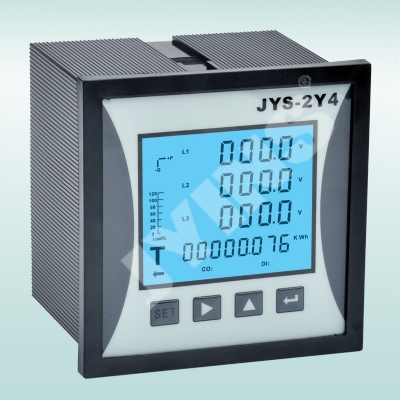

JYS-2Y4

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

Model and meaning



technical parameters

voltage imput:AC 100V,200V,380V

overload:1.2 times rated value(continuously ),2 times rated value (10s)

power consumption:<0.1VA(per phase)

current imput:AC 1A,5A。

overload:1.2 times rated value(continuously ),2 times rated value (10s)

power consumption:<0.1VA(per phase)

auxiliary power:AC/DC 80-270V

power consumption:<5VA

external form & hole-cutting size:120x120mm  112x112mm

product presentation:

adopt blue backlit LCD display,can display common power quantity and other parameters.meter's power quantity parameters display is actual value once measued of PT ,CT(means:V=PT*imput V,A = CT*imoutA ,display P =power value*PT*CT).can swithover display voltage by panel's switch key(now the first display indicator lighting)the first row ,the second row ,the third row LED display separately represent UA,UB,UC or UAB,UBC,UCA.it's unit is V .indicator K or M lignting means KV&MV.display current (now the second display indicator lighting )the first row ,the second row ,the third row LED display separately represent IA,IB,IC.it's unit is A.indicator K or M lighting means KA&MA.display power (now the second display indicator lighting)the first row ,the second row ,the third row LED display separately represent P,Q,COSФ,it's unit is  W,Var.indicator K or M lighting means Kw,KVar & Mw,Mvar.energy display adopt the first and second row LED display (as the first display 278.1 the second display 5995,the energy is 278.1599)
