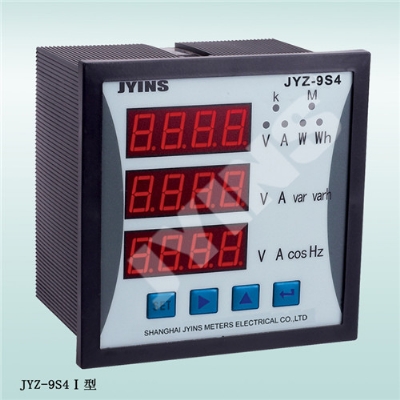

JYZ-9S4

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

Model and meaning:



Product overview:

JYZ (PD1006-1) multi-functional network meter can highly precisely measure the general power parameters in three-phase grid system: three-phase voltage, three-phase current, active power, reactive power, power factor, line frequency, active energy, reactive energy. It also has the function of communication interface, electrical pulse output, four-way switch input, four-way switch output, and four-way analog output, which enables it to monitor and manage the local or remote switching signals. With the communication protocols, it is able to give LED display on-site and remote-site communications. The multi-functional meter is convenient to install, easy to wire, and simple to maintain. It has few projects and can be set input parameters as field programmed. And it can communicate with different PLC and industrial computers in the network.



Product parameters:

Measurable voltage: AC 100V200V380V Overload: 1.2 times rated for continuous, and 2 times rated for 10s. Power consumption: <0.1VA/phase Measurable current: AC1A5A Auxiliary power supply: AC/DC80V-270V.

Product functions:

Measurement: three-phase voltage, three-phase current, active power, reactive power, power factor, frequency, active energy, reactive energy. Calculation: positive and negative active energy, inductive and capacitive reactive power. Display: three row LED digital tube display, with high visibility. Communication: RS485 communication, and MODBUS-RTU protocol. Output: two-way power pulse output, four-way switch output, and four-way analog output. Input: four-way switch input. Expansion: can directly receive signals from the current or voltage transformers, and can be set input parameters ratio as field programmed. Uses: suitable for complete monitoring and management of electrical parameters in a variety of line circuits and high-capacity electrical circuits. Time aging: all the products have been time-aged, so that it can stably work in a long-term to reduce the impact of external environment on the meter, offering users a satisfactory product.

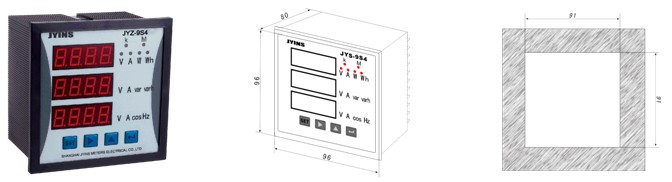

Overall diagram and Entrance size

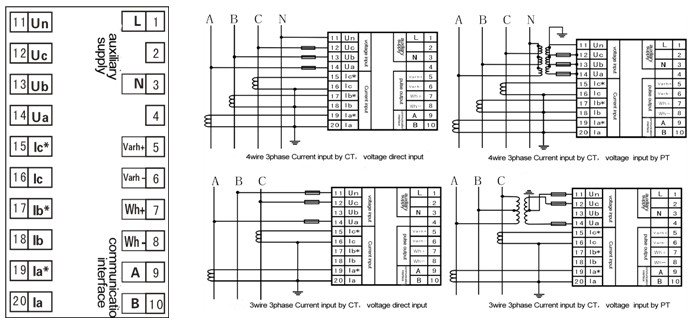

Connection diagram

NoteIf have any difference with the connection diagram on the meter ,using the that one as the correct one.
