LPV-60W

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 Features:

vice rated voltage mode power supply

International general had full scope

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

I had to meet 6 7 P level

1 0, 0% had burned machine full load test

Had 2 years quality assurance

Size: 190 x 48 had 38 mm



Technical parameter:
model LPV-60-12 LPV-60-24 LPV-60-36
output Dc output voltage 12V 24V 36V
Output voltage tolerance ±3% ±3% ±3%
Rated output current 5A 2.5A 1.7A
Output current range 0-5A 0-2.5A 0-1.7A
Output power 60W 60W 61W
Ripple and the noise 100mVp-p 150mVp-p 180mVp-p
Dc voltage adjustable scope ±10% ±10% ±10%
Start, rise, keep time 500ms,20ms,24ms/230VAC.800ms,30ms,20ms/115VAC
input Input voltage range 90~264VAC 47~63Hz,126~373VDC
Exchange input current 1.4A/115VAC 0.7A/230VAC
efficiency 82% 84% 85%
Impulse current Cold start current 35A/230VAC
Leakage current <1mA/240VAC
Protection characteristics 过载保护 Protection way: hiccups mode, load abnormal conditions can be removed recovery

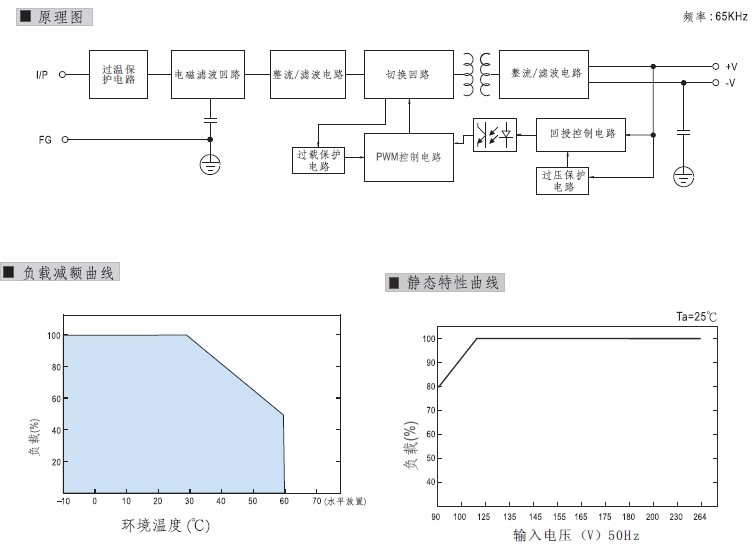

environment Overload protection -10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve )
Keep temperature, humidity -20℃~+85℃;10%~95%RH No condensation
Vibrate resistance 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis
security Compression sex Between input and output :1.5KVAC
Insulation resistance Between input and output :100M Ohms/500VDC
Standards Safety standards Accord with UL1012
EMC standard Accord with EN55022,CLASSA
other weight 0.6kg 190*48*38(L*W*H)
packaging 0.6kg/30pcs/19kg
note 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope with 1 to 2 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

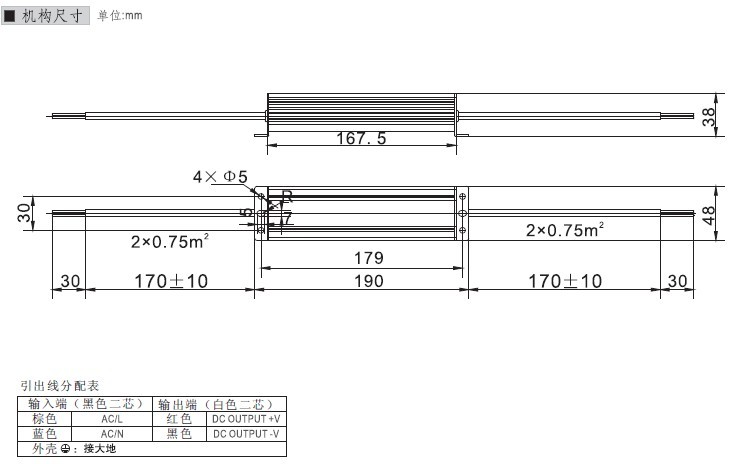

Installation dimensions:
