 Introduction

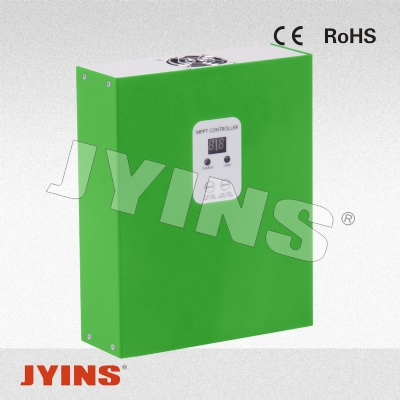

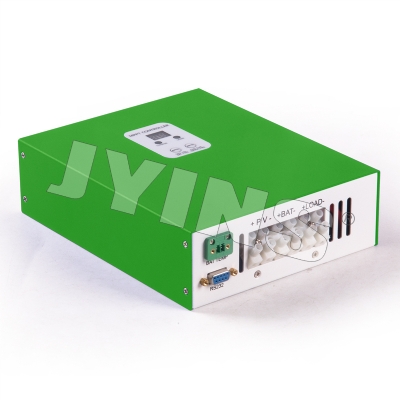

This e-SMART MPPT (maximum Power Point Tracking) solar charge controller is a smart solar controller with automatic recognition function, smart charging and discharging function, three stages charging function to protect battery. It can increase 30%~60% efficiency than traditional PWM controller. It supports many kinds of batteries.It also have RS232 communication function.



Features:

1. MPPT charging mode, peak efficiency up to 99%, saving 30%~60% solar panel than traditional PWM controller.

2. DC12V/24V/48V battery system automatic recognition, users can use it in different system conveniently.

3. Maximum PV input voltage up to DC100V.

4. Three stages charge: fast charge(MPPT), constant voltage charge,floating charge, It can protect batteries well .

5. Three option of discharge: on mode and off mode and PV voltage(solar) control mode.

6. Users can choose 4 kinds of commonly standard batteries(Sealed lead acid, Vented, Gel, NiCd). Other kinds of batteries can be defined by users.

7. Digital tube can display battery voltage and charging current. The software can display various parameters such as model number, PV input voltage, battery type, battery voltage, charging current, charging power, working condition.

8. RS232 communication, we can offer communication protocol also, it’s convenient for user’s integration management.

9. This controller can be paralleled infinitely.

10. CE and RoHS Certifications are approved.We can help clients to approve other certifications.



Parameters:

MPPT solar controller modes
J-Y-eSMART-12V/24V/48V-series

15A

20A

25A

30A

40A

Charge mode

MPPT(maximum power point tracking)

Charge method

Three stages: constant current(MPPT),constant voltage,floating charge

System type

DC12V/24V/48V

Automatic recognition

System voltage

12V system

DC9V~DC15V



24V system

DC18V~DC30V



48V system

DC36V~DC60V

Soft start time

12V/24V/48Vsystem

≤3S

Dynamic response recoverytime

12V/24V/48Vsystem

500us

MPPT efficiency

12V/24V/48Vsystem

≥96.5%,≤99%

INPUT CHARACTERISTICS

MPPT working voltage range

12V system

DC14V~DC100V



24V system

DC30~DC100V



48V system

DC60~DC100V

Low input voltage

protection point

12V system

DC14V



24V system

DC30V



48V system

DC60V

Low input voltage

Recovery point

12V system

DC18V



24V system

DC34V



48V system

DC65V

High input voltage protection point

12V/24V/48Vsystem

DC110

High input voltage recovery point

12V/24V/48Vsystem

DC100V

Maximum PV power

12V system (W)

213

284

355

426

568



24V system (W)

426

568

710

852

1136



48V system (W)

852

1136

1420

1704

2272

CHARGE CHRECTRESTICS

Selectable Battery Types

(Default Gel

battery)

12V/24V/48Vsystem

Sealed lead acid, Vented, Gel, NiCd battery

(Other types of the batteries also can be defined)

Constant Voltage

12V/24V/48Vsystem

Please check the charge voltage according to the battery type form.

Floating Charge Voltage

12V/24V/48Vsystem



Rated Input Current

12V/24V/48Vsystem

15A

20A

25A

30A

40A

Current-limit

Protection

12V/24V/48Vsystem

20A

25A

30A

35A

45A

Temperature Factor

12V/24V/48Vsystem

±0.02%/℃

Temperature Compensation

12V/24V/48Vsystem

14.2V-(The highest temperature-25℃)*0.3

Output Ripples(peak)

12V/24V/48Vsystem

200mV

Output Voltage Stability

Precision

12V/24V/48Vsystem

≤±1.5%

Output Discharge Characteristics

Output voltage

Base on battery voltage

Low voltage output

Protection point

Default 10.5V; Recovery 11V; It can be adjustable.

Rated output Current

30A

The output control

On mode, Off mode, PV voltage control mode

Output control set mode

Controller button or PC software

Display

LED digital tube display

Battery voltage, Charge current

LED light display

Charging indicator lightLOAD indicator light

PCcommunication port

RS232

Protection

Low input voltage protection

Check the input characteristics

High input voltage protection

Check the input characteristics

Charge overpower protection

yes

Discharge low voltage protection

yes

Discharge high current protection

yes

Temperature protection

yes

Other Parameters

Noise

≤40dB

Thermal heat-dissipating method

Itself cooling

Fan cooling

Components

Imported material With EU standards.

Certification

CE\FCC\RoHS

Physical

Measurement D x W x H(mm)

205*168*60

package size D x W x H(mm)

265*196*110

N.G(KG)

1.8kg

G.N(KG)

2kg

Mechanical Protection

IP25

Environment

Humidity

0~90%RH ( no condense)

Altitude

0~3000m

Operating Temperature

-20℃ ~ +50℃

Storage Temperature

-40℃ ~ +75℃

Atmospheric Pressure

70~106kPa
