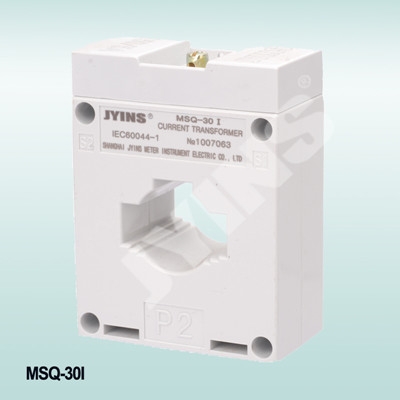

MSQ-30I

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

1、Summarize

This type of current transformer is plastic shell , fully closed structure and indoor using products . For rated frequency is 50HZ or 60HZ and rated below 0.66 KV power system for current and energy measurement . This Products comply with IEC60044-1 ; 2003 and GB1208-2006 Current Transformer standard.





2、 Useing Condition

1、Altitude ≤ 1000km
2、Ambient temperature ≤ 40Ċ,≥-5Ċ
3、Ambient relative air humidity ≤ 85%(20Ċ)
4、Installation site prohibit the following things:
Gas which seriously affecting the insulation transfomer

Steam ; Chemical deposition ; Contamination

Other explosive or corrosive media





3、 Structure Introduction

This series current transformer is ABS flame-retardant plastic shell fully closed structure, It made the product less susceptible to moisture. Permeability material adopt toroidal core which via annealing testing to ensure products accuracy of 0.2 or 0.5. The application of Superconducting magnetic materials makes the product achieve the same volume level del 0.2 S or 0.5 S plan and Can make the products in a wide current of 1%-120% accurate measurement under load . The primary is P1 、P2,secondry is S1、 S2. When the primary current flows P1 to P2 , then the secondary current through the external circuit flows from S1 to S2 ,is subtractive polarity.

Special remind

1、 When a current is passed, not open the secondary circuit, or high-pressure generation

2、 The current transformer primary structure of single-row of holes







4、 Model and Meaning

5、Major Technical Parameters

1、Rated Primary Current: 30-5000A

2、Rated Secondary Current :5A or 1A
3、Rated Voltage:0.66KV

4、Accuracy In Measuring Grades:0.2S、0.5S、0.2、0.5
5、Load Power Factor:cosØ=0.8(lag)

6、Product Standard:GB1208-2006 Current Transformer

7、Other Technique Under Blow:

Type

Rated Current Ratio

Accuracy Level And Output Capacity(VA)

COSØ=0.8(lag)

Maximum Working Voltage(V)

0.2S

0.2

0.5S

0.5

1

MSQ-60III

600/5-800/5

5

5

5-10

5-10

20

660

MSQ-80III

800/5-800/5

5

5-10

5-10

5-15

20

660

MSQ-100III

1000/5-800/5

5

5-10

10-15

10-20

30

660

MSQ-100III

1000/5-800/5

5-1

5-10

10-15

10-25

30

660

MSQ-120III

2000/5-800/5

5-10

5-20

15-20

20-40

40

660









6、Outline Measuremen
