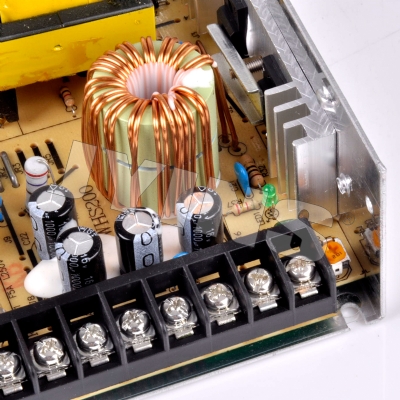

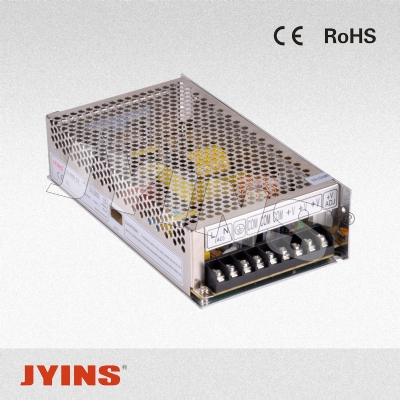

 Features:

High efficiency, high reliability

Switch input voltage range choice

100% full load and machine test

Protection characteristics: short circuit/overload/pressure/thermal

Air cooling

Working frequency 25 KHz

1 year warranty

Size: 215*115*50mm(L*W*H)



Technical parameter:
model S-200-12 S-200-13.5 S-200-15 S-200-24 S-200-27 S-200-48
output Dc output voltage 12V 13.5V 15V 24V 27V 48V
Output voltage tolerance ±1% ±1% ±1% ±1% ±1% ±1%
Rated output current 16.5A 14.7A 13A 8.3A 7.4A 4.2A
Output current range 0-16.5A 0-14.7A 0-13A 0-8.3A 0-7.4A 0-4.2A
Output power 198W 198.45W 198W 199.2W 199.8W 201.6W
Ripple and the noise 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
Dc voltage adjustable scope -16%,+10% -12%,+11% -10%,+20% -16%,+10% -4%,+18% -15%,+17%
Start, rise, keep time 200ms,100ms,20ms Loaded with
input Input voltage range 90~132 VAC/180~264VAC 47~63 Hz;The switch choice
254~370VDC
Exchange input current 4.5A/115VAC 2.5A/230VAC
efficiency 76% 79% 78% 82% 82% 83%
Impulse current 50A/115V 50A/230V
Leakage current <3.5 mA/240VAC
Protection characteristics Overload protection 115%~135%
Protection way: current limiting, automatic recovery
Overvoltage protection 115%~135%
Protection way: voltage limitation, automatic recovery
High temperature protection RTH3≥90℃when
,Cut output, temperature down automatically restored
environment Working temperature, humidity -10℃~+50℃;20%~90 %RH
Keep temperature, humidity -20℃~+85℃;10%~95 %RH
Vibrate resistance 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis
security Compression sex Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
Insulation resistance Between the input and output, the input and output, and ground:
100M Ohms/500VDC
standards Safety standards Accord with
UL1950
EMC standard Drsign refer to FCC Part15 J Conduction Class A
other weight 0.93Kg
packaging 12pcs/11.6Kg/0.93CUFT
note All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
Specific output current see output drop forehead curve.

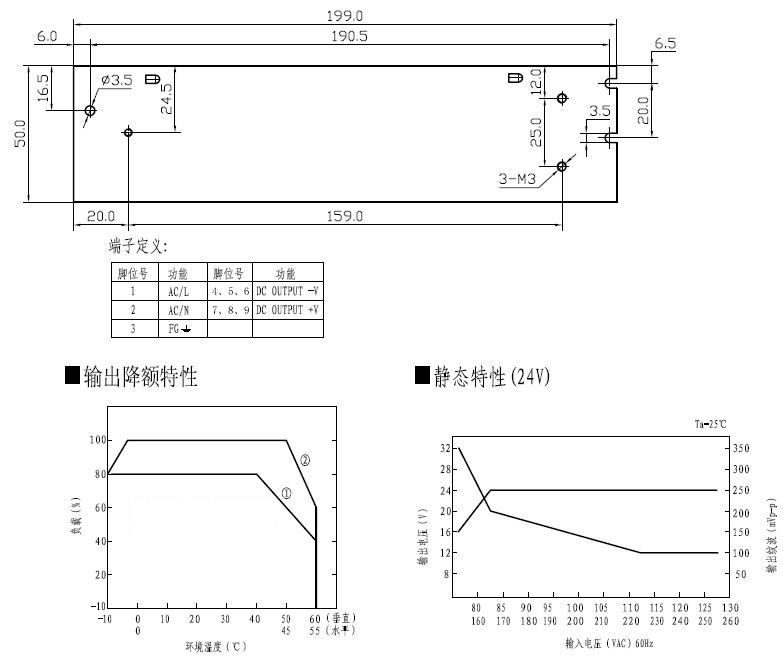

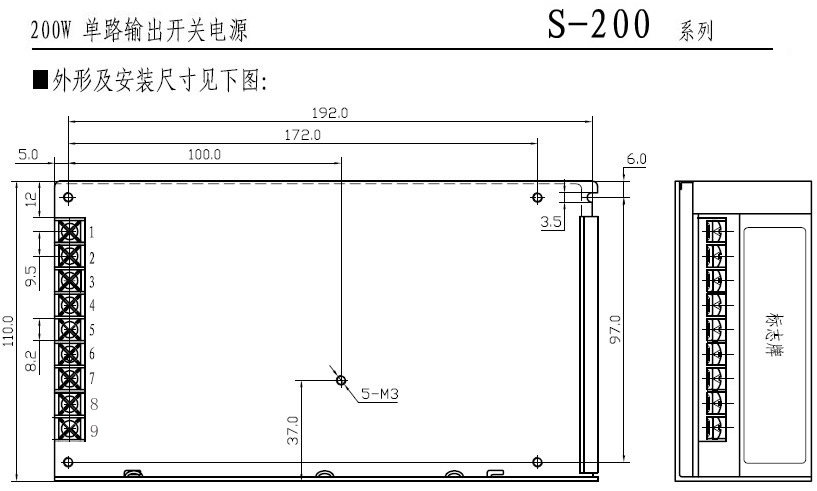

Installation dimensions:
