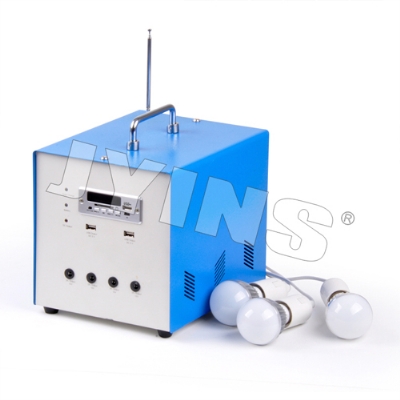

Integrated design for charging DC 12V power supply, lighting device ,5V Bluetooth digital products.

High efficient PWM charging technology, intelligent management of battery's charging and discharging.

Compact dimension, low weight, easy to carry.

It can be charged both by solar energy and city electricity


Item JYPS205 JYPS205A
Solar Panel 18V/35W -50W (Mono/Poly)
Lead-acid Battery 12V/20AH*1Pcs Deep Cycle Free Maintenance
Adapter No 18V1.5A
Controller PWM 12V/3A
Output Voltage DC12V3A, USB5V1A
City Electricity Switching Time No
Charging Mode PV Charging PV/City Electricity Charging
Charging Time 7Hrs by 30W Solar Panel with Sufficient Sunlight,7Hrs by City Electricity
4Hrs by 50W Solar Panel with Sufficient Sunlight,7Hrs by City Electricity
Operating Environment 0-45℃
System Case Size 270*160*220mm
Packing Size 370*170*250mm
Net Weight 7.4 KG
Standard Cable Spec. 5m DC Cable + DC Connector


Load Capacity

Appliance Spec(W) Qty(PCS) Working Hour(h) Power Consumption(W.h)
Mobile Phone 5 2 2 20
LED Bulb 2 3 5 30
Fan 10 1 4 40
TV 25 1 3 75
Total:       165
