 Introduction

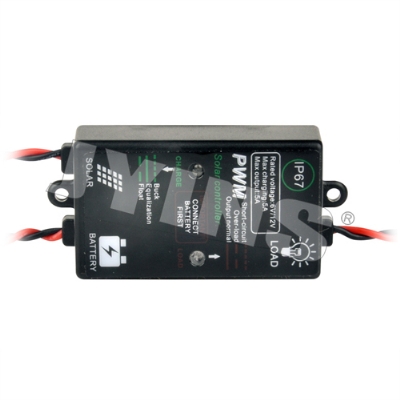

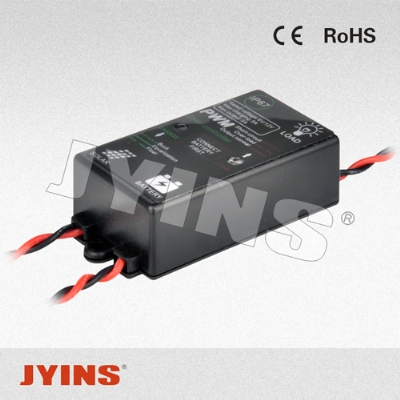

The SC-Series solar charge controller applies a microchip for intelligent control.The charging efficiency can be highly increased by using dual-mos charging circuit ,compared to normal diode for reserve current protection. The controller can extend the battery life with build-in 4-stage PWM charging program.It is equipped with various of protection function such as over-charge protection,over discharge protection ,over-load protection,reverse current protection.



Installation

Connect the individual components to the symbols provided.

Observe the following connection sequence during commissioning:

1.Connect the battery to the charge controller - plus and minus

2.Connect the photovoltaic module to the charge controller - plus and minus

3.Connect the consumer to the charge regular - plus and minus

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

*********Both LED will be flashing for 5 times when you first connect battery to the controller,this can be as a system start signal.Controller is broken if you can't see this.

ATTENTION!

1.Controller will be broken if you don't follow the connection sequency

2.Please use big cable to reduce voltage drop on wire.

3.This controller is without short-circuit protection.Therefore,we strongly recommended to connect a fuse to the circuit.



Daily maintenance

The controller is builded to be fully automatic.Please keep the controller out of water and dust after installation.No maintenance is necessary in normal condition.If the voltage is too low and not enough to start the controller(in some extreme weather),please disconnect the solar controllers and active the battery manually ,after that,connect the system again..



Specification

Model

SC601

SC603

SC605

Max charge current

1A

3A

5A

Max discharge current

1A

3A

5A

Over load

About 2A

About 4A

About 6A

Rated battery voltage

6V

Max solar panel input voltage

10.8V

Equalize voltage

7.4V

Constant voltage

7.1V

Float voltage

6.9V

LVD

5.6V

Discharge return

6.3V

Charging control

PWM 3 stage

Standby lost

2.8mA@6V

Min start voltage

4.5V

wire

20AWG*10cm

Size/weight

60x25x18mm/50g

Attn:1.All voltage are for 12V system,pls time 2 if you are using 24V system

     2.voltage tolerance 1%

     3.Product specifications are subject to change without prior notice
