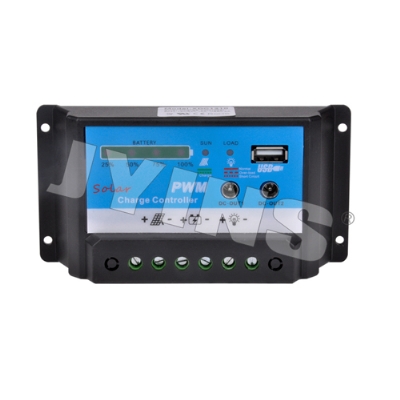

XDC1210

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 SAFETY INSTRUCTIONS

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL

it is not suited for nickel metal hydride, lithium ions or other batteries.

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.



PRODUCT FEATURES

1.Build-in industrial micro controller.

2. Input and output LED display,asimple 4-stage battery capacity indicator.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

6.Model XTD1210/XTD1220 is equiped with USB cell phone charger.



SYSTEM CONNECTION

1.Connect the battery to the charge regulator - plus and minus.it will detect the battery voltage and goes to charging progress.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!



TECHNICAL PARAMETER

MODEL

XDC1210

XDC1220

Batt voltage

12V/24V

Charge current

10A

20A

Discharge current

10A

20A

Max Solar input

42V

Charge drop

<0.2V

Discharge drop

<0.25V

Equalization

14.8V

Bulk

14.5V

Acceptance

14.2V PWM

Float

13.8V

Charge reconnect

13.0V

Discharge stop

11.2V

Discharge reconnect

12.6V

Self-consume

<10mA

Temperature compensation

N/C

USB output

5V 0.8A

N/C

Operating temperature

-35~+60 ℃

Size/Weight

133*70*35mm /150g

*all red color voltage X2 while using 24V system

*Product specifications are subject to change without prior notice
