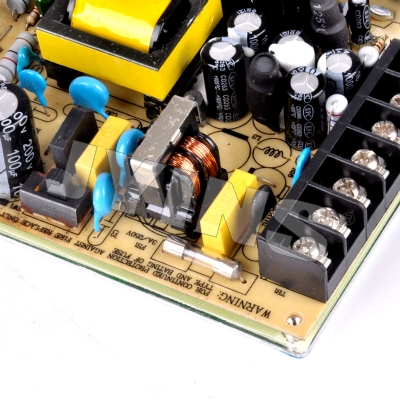

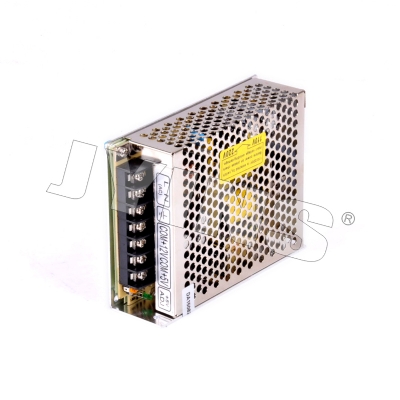

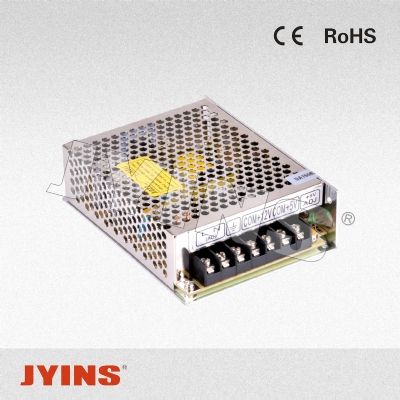

D-30W

You are here: Home >> Industries & Products >> Switching power supply series >> Dual output series >> D-30W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High efficiency, high reliability and low cost

Switch input voltage range choice

Protection characteristics: short circuit/overload

Air cooling

Has the boot display (light emitting diode (led)

Working frequency 23 KHz

1 year warranty

Size: 129 * 98 * 38 mm (L * W * H)

Technical parameter:

model		D-30A		D-30B
		CH1	CH2	CH1	CH2
output	Dc output voltage	5V	12V	5V	24V
	Output voltage tolerance	±2%	+3,-7%	±2%	+3,-5%
	Rated output current	4A	1A	2.2A	1A
	Output current range	0.5-4A	0.1-1A	0.5-4A	0.1-1A
	Output power	32W		35W
	Ripple and the noise	50mVp-p	100mVp-p	50mVp-p	100mVp-p
	Dc voltage adjustable scope	CH1： -5%，+10%
	Start, rise, keep time	200ms,50ms,30ms Loaded with
input	Input voltage range	85～132 VAC/170～264VAC47～63 Hz，The switch choice
		240～370VDC
	Exchange input current	0.8A/115 V0.45A/ 230 V
	efficiency	72%		74%
	Impulse current	Cold start current
		18A/115V36A/230V
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	105%～150%
		Protection way: cut off output turn-back type automatic recovery,
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	Protection way: cut off output turn-back type automatic recovery,
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms
standards	Safety standards	Accord with
		UL1012
	EMC standard	Design refer to FCC Part15 J Conduction Class A
other	weight	0.41Kg
	packaging	30pcs/13.4Kg/0.86CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

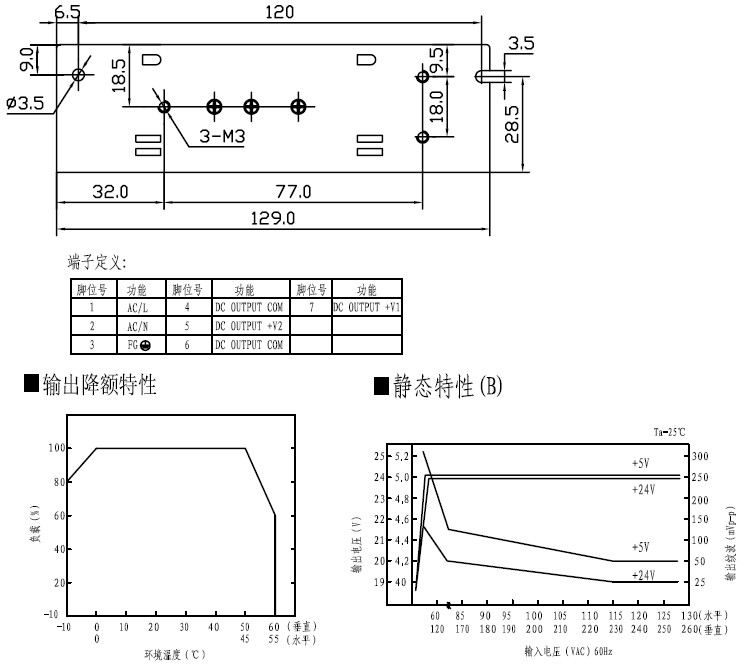

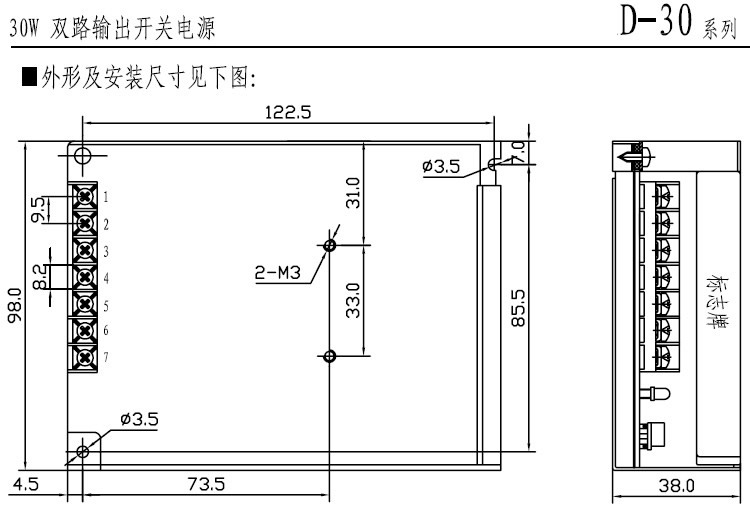

Installation dimensions:
