D-50W

You are here: Home >> Industries & Products >> Switching power supply series >> Dual output series >> D-50W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High efficiency, high reliability and low cost

Switch input voltage range choice

Protection characteristics: short circuit/overload

100% full load and machine test

Air cooling

Working frequency 24 KHz

1 year warranty

Size: 159 * 97 * 38 mm (L * W * H)

Technical parameter:

model		D-50A		D-50B
		CH1	CH2	CH1	CH2
output	Dc output voltage	5V	12V	5V	24V
	Output voltage tolerance	±2%	+5,-8%	±2%	±8%
	Rated output current	6A	2A	6A	1A
	Output current range	1-6A	0.3-2A	1-6A	0.2-1A
	Output power	54W		54W
	Ripple and the noise	50mVp-p	100mVp-p	50mVp-p	100mVp-p
	Dc voltage adjustable scope	CH1：-5%，+10%
	Start, rise, keep time	200ms,50ms,20ms Loaded with
input	Input voltage range	85～132 VAC/170～264VAC47～63 Hz；The switch choice
		240～370VDC
	Exchange input current	1.3A/115VAC0.65A/230VAC
	efficiency	73%		73%
	Impulse current	冷启动电流18A/115V36A/230V
	Leakage current	＜0.5mA/240VAC
Protection characteristics	Overload protection	105%～150%
		Protection way: cut output, intermittent automatic recovery
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10 min. / 1 cycle time, 60 minutes, the axis
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms
Complies with the standards	Safety standards	Meet UL1012
	EMC standard	Design refer to FCC Part15 J Conduction
other	weight	0.53Kg
	packaging	24pcs/13.6Kg/0.75CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

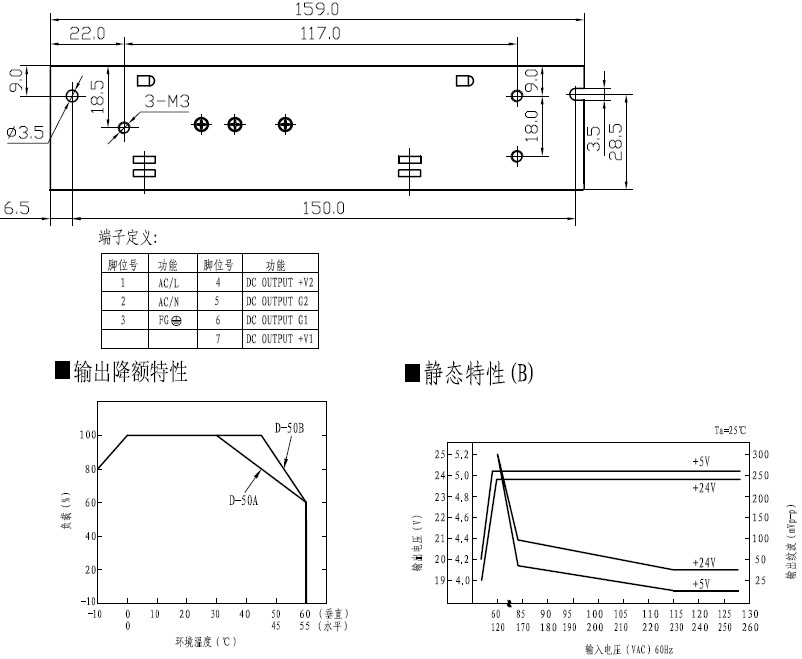

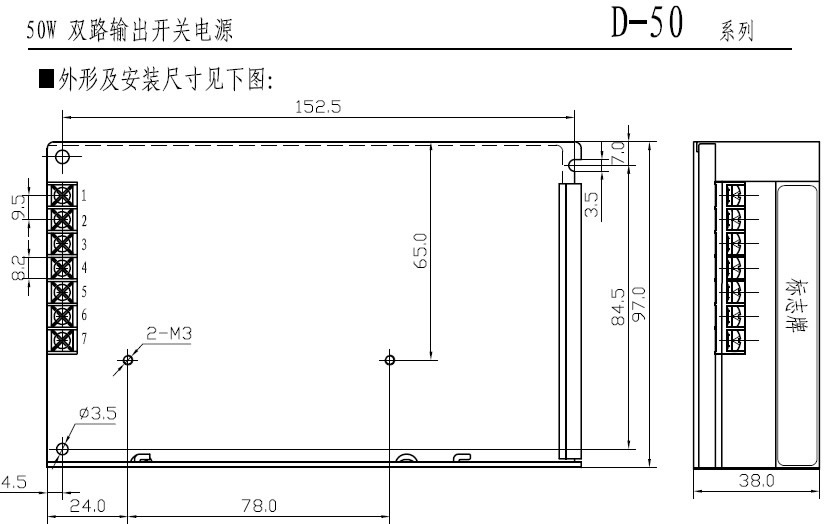

Installation dimensions:
