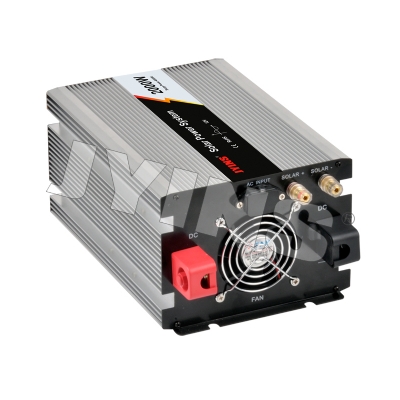

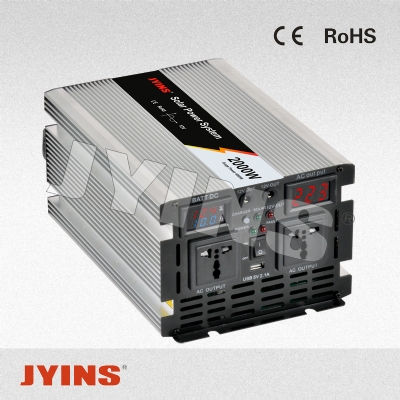

JYSYP-2000W

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 Product description

The series for inverter and solar charge discharge controller and battery charger integrated design referred to as inverse control of various filling machine; this is a with high performance, high reliability, load ability, perfect protection, intelligent charging control management function of reverse charging power supply, DC voltage 12V inverter occasions for; can provide reliable pure sine wave power supply for business, household, workstations, home appliances, air conditioning equipment, single-phase power equipment, industrial equipment, power is not more than the product of the rated power. In short it is a powerful, a wide range of intelligent high frequency power control.



Product characteristics

1, Pure sine wave output;

2, LED display, you can visually display all the running parameters of the machine;

3, high conversion efficiency, conversion efficiency of 90%, low loss;

4, carrying capacity and anti load capacity;

5, perfect protection function: low pressure, high pressure, high temperature, short circuit, overload, reverse connection protection, etc.;



technical parameter

Inverter Parameters Model JYSYP-2000
Rated power 2000W
Peak power 4000W
Input voltage DC12V DC24V
Output voltage 110VAC or 220VAC±5%
Unload current less than 1.1A 0.7A
Output frequency 50Hz±0.2Hz or 60Hz±0.2Hz
Output waveform Pure Sine Wave
Waveform distortion THD<3%(Linear load)
USB port 5V 1A
Max.efficiency 90%
Input current 10A
Input voltage range 10-15.5V 20-31V
Low voltage alarm 10.5±0.5V 21±0.5V
Low voltage protection 10±0.5V 20±0.5V
Over voltage protection 15.5±0.5V 31±0.5V
Low voltage recover 12.3±0.5V 24±0.5V
Over voltage recover 14.8V±0.5V 29.5V±0.5V
Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Solar Charger Parameters Battery 12V
Charging voltage 14.5V±0.3V
PV Input Current 10-40A
PV Input Voltage 25V(Max)
Low Voltage Disconnection 9.5V±0.5V
Low Voltage Reconnection 12.6V±0.3V
Other Parameters Working temperature -10°- +50°
Storage temperature -30°- +70°
Dimension(mm) 300x180x128mm
Packing(mm) 380x240x195mm
Net./gross weight(g) 4100/4730g
QTY/Ctn 4pcs
Meas./Ctn(mm) 505x405x420mm
Gross weight/Ctn(g) 18920g
Warranty 1 years
Configuration Standard
Cooling method Intelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
