Features:

vice rated voltage mode power supply

International general had full scope

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

I had to meet 6 7 P level

1 0, 0% had burned machine full load test

Had 2 years quality assurance

Size: had 245 x 70 x 48 mm

Technical parameter:

model		LPV-150-12	LPV-150-24	LPV-150-36
output	Dc output voltage	12V	24V	36V
	Output voltage tolerance	±3%	±3%	±3%
	Rated output current	12.5A	6.3A	4.2A
	Output current range	0～12.5A	0～6.3A	0～4.2A
	Output power	150W	151W	151W
	Ripple and the noise	120mVp-p	150mVp-p	180mVp-p
	Dc voltage adjustable scope	±10%	±10%	±10%
	Start, rise, keep time	1000ms,30ms,24ms/230VAC
input	Input voltage range	180～264VAC 47～63Hz，255～373VDC
	Exchange input current	1.8A/230VAC
	efficiency	82%	84%	85%
	Impulse current	Cold start current 40A/230VAC
	Leakage current	＜2.5mA/240VAC
Protection characteristics	Overload protection	Protection way: hiccups mode, load abnormal conditions can be removed recovery

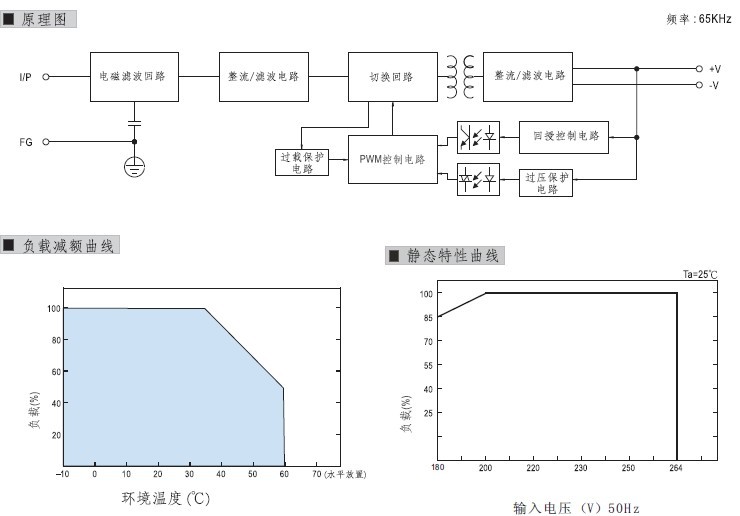

environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve )
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	Between input and output ：1.5KVAC
	Insulation resistance	Between input and output ：100M Ohms/500VDC
security	Safety standards	Accord with UL1012
	EMC standard	Accord with EN55022，CLASSA
other	weight	1.5kg 2457048（LWH）
	packaging	1.5kg/16pcs/25kg
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope with 1 to 2 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

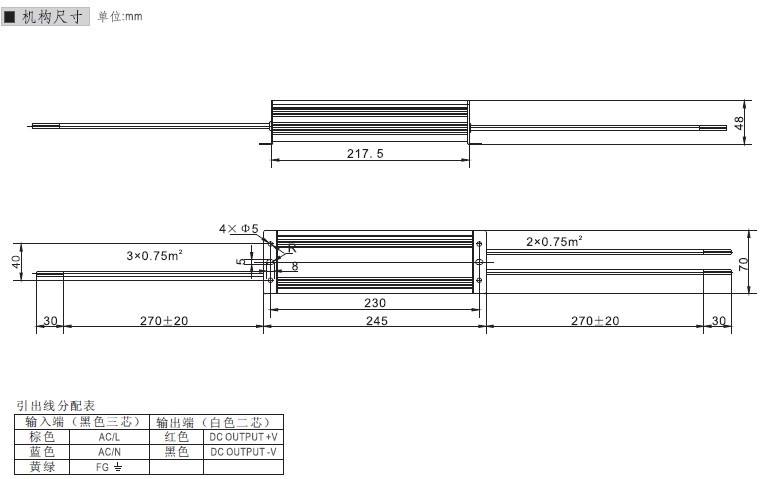

Installation dimensions:
