LPV-250W

You are here: Home >> Industries & Products >> Switching power supply series >> LED Wateproof Series >> LPV-250W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

vice rated voltage mode power supply

International general had full scope

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

I had to meet 6 7 P level

1 0, 0% had burned machine full load test

Had 2 years quality assurance

Size: had 235 x 120 x 56 mm

Technical parameter:

model		LPV-250-12	LPV-250-24	LPV-250-36
output	Dc output voltage	12V	24V	36V
	Output voltage tolerance	±3%	±3%	±3%
	Rated output current	20A	10A	7A
	Output current range	0～16.5A	0～8.3A	0～5.5A
	Output power	240W	240W	252W
	Ripple and the noise	150mVp-p	200mVp-p	200mVp-p
	Dc voltage adjustable scope	±10%	±10%	±10%
	Start, rise, keep time	800ms,30ms,24ms/230VAC
input	Input voltage range	180～264VAC 47～63Hz，255～373VDC
	Exchange input current	2.8A/230VAC
	efficiency	82%	84%	85%
	Impulse current	Cold start current 50A/230VAC
	Leakage current	＜3.5mA/240VAC
Protection characteristics	Overload protection	Rated output power of 105% ~ 135% start the load protection, protection way: cut off output power can be automatically after the restart, recovery
environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve )
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the output and input: with ground: 100 M / 500 VDC Ohms
standards	Safety standards	Accord with UL1012
	EMC standard	Accord with EN55022，CLASSA
other	weight	2.8kg 23512056（LWH）
	packaging	2.8kg/9pcs/26.5kg
note	1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

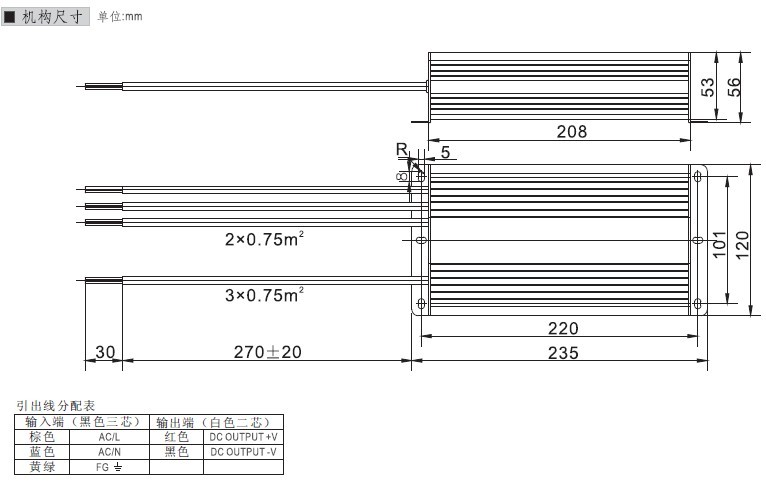

Installation dimensions:
