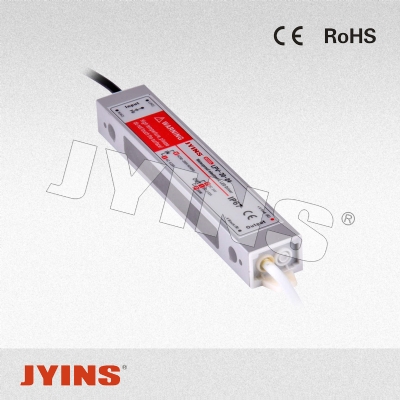

LPV-20W

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 Features:

vice rated voltage mode power supply

Had 170 ~ 264 VAC input range

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

Meet the IP67 miscalculates level

Had 100% full load test machine and

Had 2 years quality assurance

Size: 182 x had 30 x 20 mm



Technical parameter:
model LPV-20-12 LPV-20-24 LPV-20-36
output Dc output voltage 12V 24V 36V
Output voltage tolerance ±1% ±1% ±1%
Rated output current 1.7A 0.8A 0.6A
Output current range 0~1.7A 0~0.8A 0~0.6A
Output power 20W 20W 21W
Ripple and the noise 100mVp-p 100mVp-p 150mVp-p
Dc voltage adjustable scope ±10% ±10% ±10%
Start, rise, keep time 800ms,20ms,24ms/230VAC
input Input voltage range 170~264VAC 47~63Hz,235~373VDC
Exchange input current 0.28A/230VAC
efficiency 76% 78% 80%
Impulse current Cold start current 30A/230VAC
Leakage current <0.5mA/240VAC
Protection characteristics Overload protection Protection way: hiccups mode, load abnormal conditions can be removed recovery

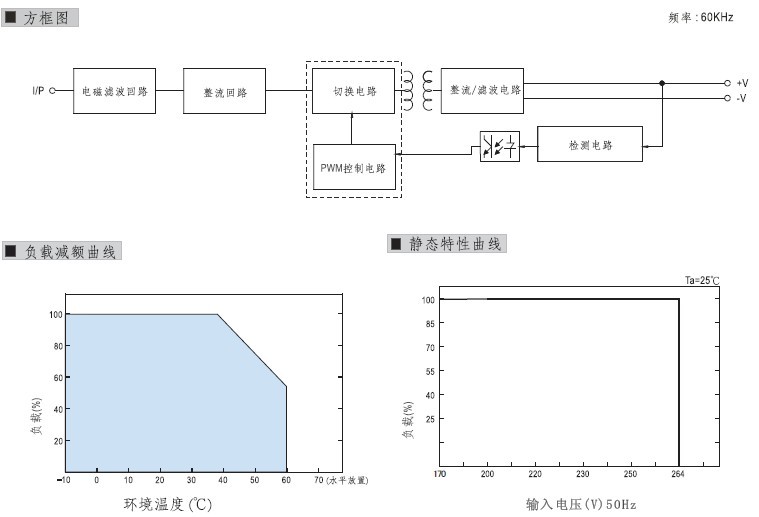

environment Working temperature, humidity -10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve )
Keep temperature, humidity -20℃~+85℃;10%~95%RH No condensation
Vibrate resistance 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis
security Compression sex Between input and output :1.5KVAC
Insulation resistance Between input and output :100M Ohms/500VDC
Complies with the standards Safety standards Accord with UL1012
EMC standard Accord with EN55022,CLASSA
other weight 0.22kg 182*30*20(L*W*H)
packaging 0.22kg/80pcs/18.5kg
note 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.


Installation dimensions:
