NED-35 Series
● Internationally used AC input
●Protection type :cutting-out/over-load/ over-voltage
●Nature air cooling
●100% full-load age test
●Two years quality warranty
Specification:
Model |
NED-35A |
NED-35B |
|||
Output |
Output channel |
CH1 |
CH2 |
CH1 |
CH2 |
DC output voltage |
5V |
12V |
5V |
24V |
|
Rated output current |
4A |
1A |
2.2A |
1A |
|
Output current range |
0.5-5A |
0.1-1.5A |
0.5-4A |
0.2-1.3A |
|
Rated output power |
32W |
35W |
|||
Wave and noise |
80mVp-p |
120mVp-p |
120mVp-p |
200mVp-p |
|
Voltage adjustment range |
CH1:4.75-5.5V |
CH1:4.75-5.5V |
|||
Voltage accuracy |
±2.0% |
±6.0% |
±2.0% |
±6.0% |
|
Linear adjust rate |
±0.5% |
±0.1% |
±0.5% |
±0.1% |
|
Over-load adjust rate |
±1.5% |
±3.0% |
±1.5% |
±3.0% |
|
Set up, rise time |
500ms,30ms/230VAC 1200ms,30ms/115VAC(full load) |
||||
Hold up time |
50ms/230VAC 10ms/115VAC (full load) |
||||
Input |
Input voltage range |
85-264VAC or 120-370VAC |
|||
Frequency range |
47-63Hz |
||||
Efficiency |
78% |
81% | |||
AC current |
0.75A/115VAC 0.5A/230VAC |
||||
Inrush current |
Cold-start 45A |
||||
Leakage current |
<2mA/240VAC |
||||
Protection
|
Overload protection |
Rated output power 110%~150% set overload protection |
|||
Protection type:pulsing hiccup,shut down voltage abnormal condition. auto recovery |
|||||
Over-voltage protection |
CHI:5.75-6.75V |
||||
Protection type:Cutting output, re-recovery. auto recovery |
|||||
Condition
|
Working temperature |
-20℃~+60℃ (Reference derating curve) |
|||
Working humidity |
20℃~90℃RH (No Condensation) |
||||
Store temperature and humidity |
-40℃~+85℃;10%~95%RH |
||||
Temperature factor |
±0.03%/℃(0-45℃) |
||||
shock resistance |
10~500Hz,2G 10min./1cycle,period for 60 min,X、Y、Z axes |
||||
Safety and electromagnetic compatibility
|
Safety standard |
UL60950-1,CB(EN60950)-1 |
|||
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC |
||||
Electromagnetic interference |
EN55022(CISPR22) Class B |
||||
Harmonic current |
EN61000-3-2,-3 |
||||
Electronmagnetic stamina |
EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1 |
||||
Others |
MTBF |
≥402.7Khrs, MIL-HDBK-217F(25℃) |
|||

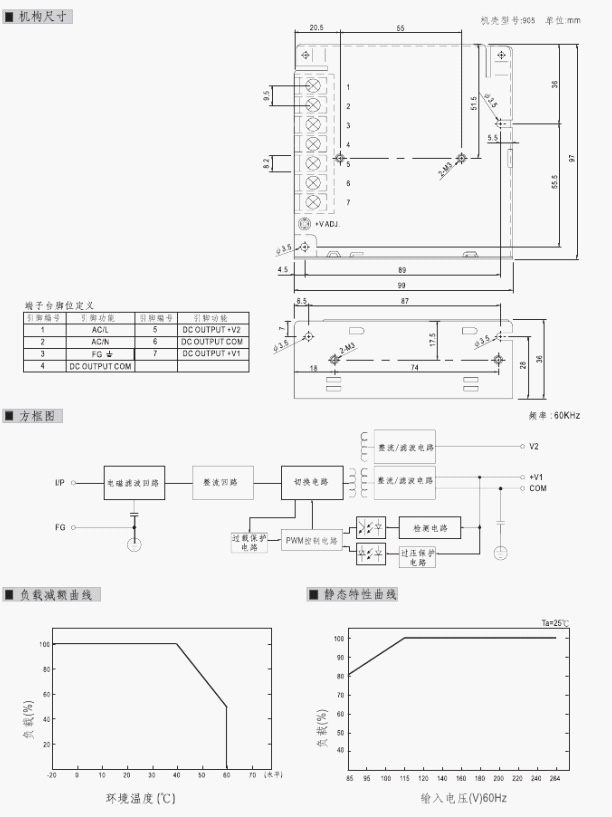

Measurement |
99*197*36mm(L*W*H) |
||||
Packing |
0.36k.g;45pcs、17.2k.g/0.93CUFT |
||||
Notes |
1. The testing condition for the parameter above is:230VAC input, rated load,25℃. 2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 3. Error,include the setting error, current regulation and voltage regulation 5.Over-load adjustment rate test method: from 20%-100% rated over-load , others output under 60% . |
