Model

NED-50A

NED-50B

Output

Output channel

CH1

CH2

CH1

CH2

DC output voltage

6V

2V

4V

1.4V

Rated output current

4A

1A

2.2A

1A

Output current range

1-6A

0.3-3A

1-6A

0.2-2A

Rated output power

54W

53.6W

Wave and noise

80mVp-p

120mVp-p

80mVp-p

200mVp-p

Voltage adjustment range

CH1:4.75-5.5V

CH1:4.75-5.5V

Voltage accuracy

±2.0%

±6.0%

±2.0%

±6.0%

Linear adjust rate

±0.5%

±0.1%

±0.5%

±0.1%

Over-load adjust rate

±1.5%

±3.0%

±1.5%

±3.0%

Set up, rise time

500ms,30ms/230VAC 1200ms,30ms/115VAC(full load)

Hold up time

50ms/230VAC 10ms/115VAC (full load)

Input

Input voltage range

85-264VAC or 120-370VAC

Frequency range

47-63Hz

Efficiency

79%

AC current

1.1A/115VAC 0.65A/230VAC

Inrush current

Cold-start 45A

Leakage current

＜2mA/240VAC

Protection

Overload protection

Rated output power 110%～150% set overload protection

Protection type：pulsing hiccup，shut down abnormal condition. auto recovery

Over-voltage protection

CHI:5.75-6.75V

Protection type：Cutting output， re-recovery. auto recovery

Condition

Working temperature

-20℃～+60℃ (Reference derating curve)

Working humidity

20℃～90℃RH (No Condensation)

Store temperature and humidity

-40℃～+85℃;10%～95%RH

Temperature factor

±0.03%/℃（0-45℃）

shock resistance

10～500Hz，2G 10min./1cycle，period for 60 min，X、Y、Z axes

Safety and electromagnetic compatibility

Safety standard

UL60950-1,CB(EN60950)-1

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC

Electromagnetic interference

EN55022(CISPR22) Class B

Harmonic current

EN61000-3-2,-3

Electronmagnetic stamina

EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1

Others

MTBF

≥413.3Khrs, MIL-HDBK-217F(25℃)

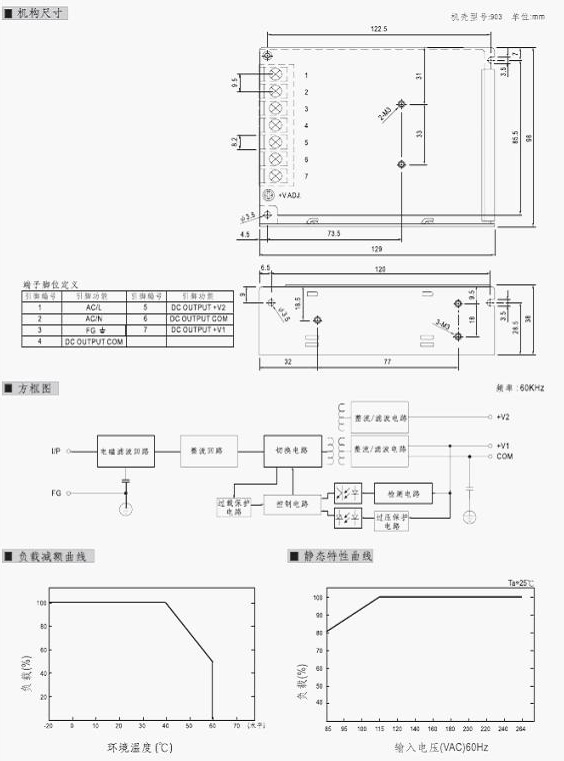

Measurement

129*98*38mm(L*W*H)

Packing

0.44k.g；30pcs、14.2k.g/0.72CUFT

Notes

1. The testing condition for the parameter above is:230VAC input, rated load,25℃.
2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
3. Error,include the setting error, current regulation and voltage regulation
4.Linear adjust rate test method: under rated over-load, From low voltage to high voltage
5.Over-load adjustment rate test method: from 20%-100% rated over-load , others output under 60% .
6.In current range, total power≤ reserve power
7.Inner components include power supply, Combined with the electromagnetic compatibility test
