Model

NES-15-5

NES-15-12

NES-15-15

NES-15-24

NES-15-48

Output

DC output voltage

5V

12V

15V

24V

48V

Rated output current

3A

1.3A

1A

0.7A

0.35A

Output current range

0-3A

0-1.3A

0-1A

0-0.7A

0-0.35A

Rated output power

15W

15.6W

15W

16.8W

16.8W

Wave and noise

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Voltage adjustment range

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

43.2-52.8V

Voltage accuracy

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

Linear adjust rate

±1.5%

±0.5%

±0.5%

±0.5%

±0.5%

Over-load adjust rate

±1.5%

±0.5%

±0.5%

±0.5%

±0.5%

Set up, rise time

1000ms,30ms/230VAC 1000ms,30ms/115VAC(full load)

Hold up time

100ms/230VAC 20ms/115VAC (full load)

Input

Input voltage range

85-264VAC or 120-370VAC

Frequency range

47-63Hz

Efficiency

79%

AC current

0.35A/115VAC 0.25A/230VAC

Inrush current

Cold-start 45A

Leakage current

＜2mA/240VAC

Protection

Overload protection

Rated output power ≥150% set overload protection

Protection type：pulsing hiccup，shut down abnormal condition. auto recovery

Over-voltage protection

5.75-6.75V

Protection type：Cutting output， Zener diodes a clamp

over temperature protection

Inner crystalline temperature≥140℃，set temperature protection

Protection type：Cutting output， temperature recovery. auto recovery

Condition

Working temperature

-20℃～+60℃ (Reference derating curve)

Working humidity

20℃～90℃RH (No Condensation)

Store temperature and humidity

-40℃～+85℃;10%～95%RH

Temperature factor

±0.03%/℃（0-45℃）

shock resistance

10～500Hz，2G 10min./1cycle，period for 60 min，X、Y、Z axes

Safety and electromagnetic compatibility

Safety standard

UL60950-1,CB(EN60950)-1, pass GB4943

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70%RH

Electromagnetic interference

EN55022(CISPR22) Class B, GB9254 Class

Harmonic current

EN61000-3-2,-3

Electronmagnetic stamina

EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1

Others

MTBF

≥563.5Khrs, MIL-HDBK-217F(25℃)

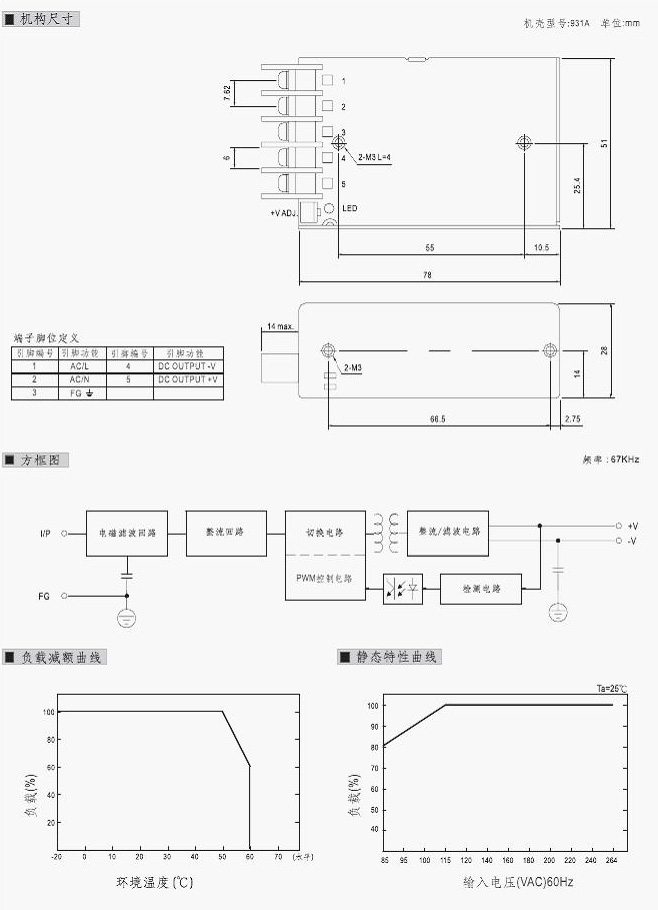

Measurement

78*51*28mm(L*W*H)

Packing

0.18k.g；60pcs、11.8k.g/0.46CUFT

Notes

1. The testing condition for the parameter above is:230VAC input, rated load,25℃.
2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
3. Error,include the setting error, current regulation and voltage regulation
4.Linear adjust rate test method: under rated over-load, From low voltage to high voltage
5.Over-load adjustment rate test method: from 20%-100% rated over-load , others output under 60% .
6.Inner components include power supply, Combined with the electromagnetic compatibility test
