● AC input through the switch
●Protection type :cutting-out/over-load/ over-voltage
●Nature air cooling
●LED power light
●100% full-load age test
●Two years quality warranty
Specification:
Model |
NED-100A |
NED-100B |
NED-100C |
NED-100D |
||||||
Output |
Output channel |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
|
DC output voltage |
5V |
12V |
5V |
24V |
12V |
5V |
24V |
5V |
||
Rated output current |
10A |
4.2A |
8A |
2.5A |
7A |
3A |
3.5A |
3A |
||
Output current range |
2-10A |
0.7-7.0A |
1-10A |
0.3-3.5 |
0-8A |
0-3A |
0-4A |
0-3A |
||
Rated output power |
100.4W |
100W |
99W |
99W |
||||||
Wave and noise |
80mVp-p |
120mVp-p |
80mVp-p |
200mVp-p |
120mVp-p |
80mVp-p |
120mVp-p |
80mVp-p |
||
Voltage adjustment range |
CH1:4.75-5.5V |
CH1:4.75-5.5V |
CH1:11.4-13.2V |
CH1:22.8-26.4V |
||||||
Voltage accuracy |
±2.0% |
±1.0% |
±2.0% |
±8.0% |
±2.0% |
±3.0% |
±2.0% |
±3.0% |
||
Linear adjust rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
Over-load adjust rate |
±1.0% |
±5.0% |
±1.0% |
±4% |
±1.0% |
±2.0% |
±1.0% |
±2.0% |
||
Set up, rise time |
2000ms,30ms/230VAC 1200ms,30ms/115VAC(full load) |
|||||||||
Hold up time |
25ms/230VAC 20ms/115VAC (full load) |
|||||||||
Input |
Input voltage range |
88-132/176-264VAC or 248-373VAC |
||||||||
Frequency range |
47-63Hz |
|||||||||
Efficiency |
80% |
82% |
80% |
82% |
||||||
AC current |
2A/115VAC 1.2A/230VAC |
|||||||||
Inrush current |
Cold-start 45A |
|||||||||
Leakage current |
<2mA/240VAC |
|||||||||
Protection
|
Overload protection |
Rated output power 110%~150% set overload protection |
||||||||
Protection type:pulsing hiccup,shut down voltage abnormal condition. auto recovery |
||||||||||
Over-voltage protection |
CHI:5.75-6.75V |
CHI:5.75-6.75V | CHI:13.8-15.8V | CHI:27.6-32.4V | ||||||
Protection type:pulsing hiccup,shut down abnormal condition. auto recovery |
||||||||||
Condition
|
Working temperature |

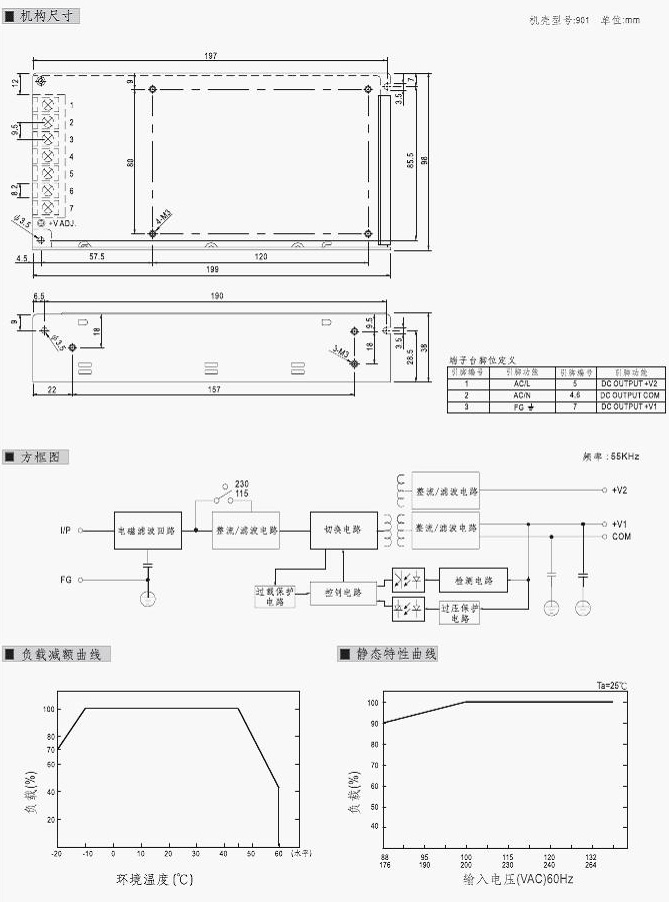

-20℃~+60℃ (Reference derating curve) |
||||||||
Working humidity |
20℃~90℃RH (No Condensation) |
|||||||||
Store temperature and humidity |
-40℃~+85℃;10%~95%RH |
|||||||||
Temperature factor |
±0.03%/℃(0-45℃) |
|||||||||
shock resistance |
10~500Hz,2G 10min./1cycle,period for 60 min,X、Y、Z axes |
|||||||||
Safety and electromagnetic compatibility
|
Safety standard |
UL60950-1,CB(EN60950)-1 |
||||||||
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC |
|||||||||
Electromagnetic interference |
EN55022(CISPR22) Class B |
|||||||||
Harmonic current |
EN61000-3-2,-3 |
|||||||||
Electronmagnetic stamina |
EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1 |
|||||||||
Others |
MTBF |
≥320.7Khrs, MIL-HDBK-217F(25℃) |
||||||||
Measurement |
199*98*38mm(L*W*H) |
|||||||||
Packing |
0.55k.g;30pcs、17.5k.g/0.97CUFT |
|||||||||
Notes |
1. The testing condition for the parameter above is:230VAC input, rated load,25℃. |
