NET-50 Series
● International used AC input
●Protection type :cutting-out/over-load/ over-voltage
●Nature air cooling
●100% full-load age test
●Two years quality warranty
Specification:
Model |
NET-50A |
NET-50B |
NET-50C |
NET-50D |
|||||||||
Output |
Output channel |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
DC output voltage |
5V |
12V |
-5V |
5V |
12V |
-12V |
5V |
15V |
-15V |
5V |
24V |
12V |
|
Rated output current |
4A |
2A |
0.5A |
4A |
2A |
0.5A |
4A |
1.5A |
0.5A |
4A |
1.5A |
0.5A |
|
Output current range |
0.6-5A |
0.2-2.5A |
0.1-0.7A |
0.6-5A |
0.2-2.5A |
0.1-0.7A |
0.6-5A |
0.2-2.A |
0.1-0.7A |
0.6-5A |
0.1-1.5A |
0.1-1.5A |
|
Rated output power |
46.5W |
50W |
50W |
51W |
|||||||||
Wave and noise |
80mVp-p |
120mVp-p |
120mVp-p |
80mVp-p |
120mVp-p |
120mVp-p |
80mVp-p |
150mVp-p |
150mVp-p |
80mVp-p |
200mVp-p |
120mVp-p |
|
Voltage adjustment range |
CH1:4.75-5.5V |
CH1:4.75-5.5V |
CH1:4.75-5.5V |
CH1:4.75-5.5V |
|||||||||
Voltage accuracy |
±2.0% |
±6.0% |
±5.0% |
±2.0% |
±6.0% |
±5.0% |
±2.0% |
±8.0% |
±5.0% |
±2.0% |
±8.0% |
±6.0% |
|
Linear adjust rate |
±0.5% |
±0.1% |
±0.1% |
±0.5% |
±0.1% |
±0.1% |
±0.5% |
±0.1% |
±0.1% |
±0.5% |
±0.1% |
±0.1% |
|
Over-load adjust rate |
±1.5% |
±3.0% |
±3.0% |
±1.5% |
±3.0% |
±3.0% |
±1.5% |
±3.0% |
±3.0% |
±1.5% |
±3.0% |
±3.0% |
|
Set up, rise time |
500ms,30ms/230VAC 1200ms,30ms/115VAC(full load) |
||||||||||||
Hold up time |
50ms/230VAC 10ms/115VAC (full load) |
||||||||||||
Input |
Input voltage range |
85-264VAC or 120-370VAC |
|||||||||||
Frequency range |
47-63Hz |
||||||||||||
Efficiency |
76% |
78% |
78% |
80% |
|||||||||
AC current |
1.1A/115VAC 0.65A/230VAC |
||||||||||||
Inrush current |
Cold-start 45A |
||||||||||||
Leakage current |
<2mA/240VAC |
||||||||||||
Protection
|
Overload protection |
Rated output power 110%~150% set overload protection |
|||||||||||
Protection type:pulsing hiccup,shut down voltage abnormal condition. auto recovery |
|||||||||||||
Over-voltage protection |
CHI:5.75-6.75V |
||||||||||||
Protection type:cut off output. Power reboot auto recovery |
|||||||||||||
Condition
|
Working temperature |
-20℃~+60℃ (Reference derating curve) |
|||||||||||
Working humidity |
20℃~90℃RH (No Condensation) |
||||||||||||
Store temperature and humidity |
-40℃~+85℃;10%~95%RH |
||||||||||||
Temperature factor |
±0.03%/℃(0-45℃) |
||||||||||||
shock resistance |
10~500Hz,2G 10min./1cycle,period for 60 min,X、Y、Z axes |
||||||||||||
Safety and electromagnetic compatibility
|
Safety standard |
UL60950-1,CB(EN60950)-1 |
|||||||||||
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||||||||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC |
||||||||||||
Electromagnetic interference |
EN55022(CISPR22) Class B |
||||||||||||
Harmonic current |
EN61000-3-2,-3 |
||||||||||||
Electronmagnetic stamina |
EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1 |
||||||||||||
Others |
MTBF |
≥361.6Khrs, MIL-HDBK-217F(25℃) |
|||||||||||

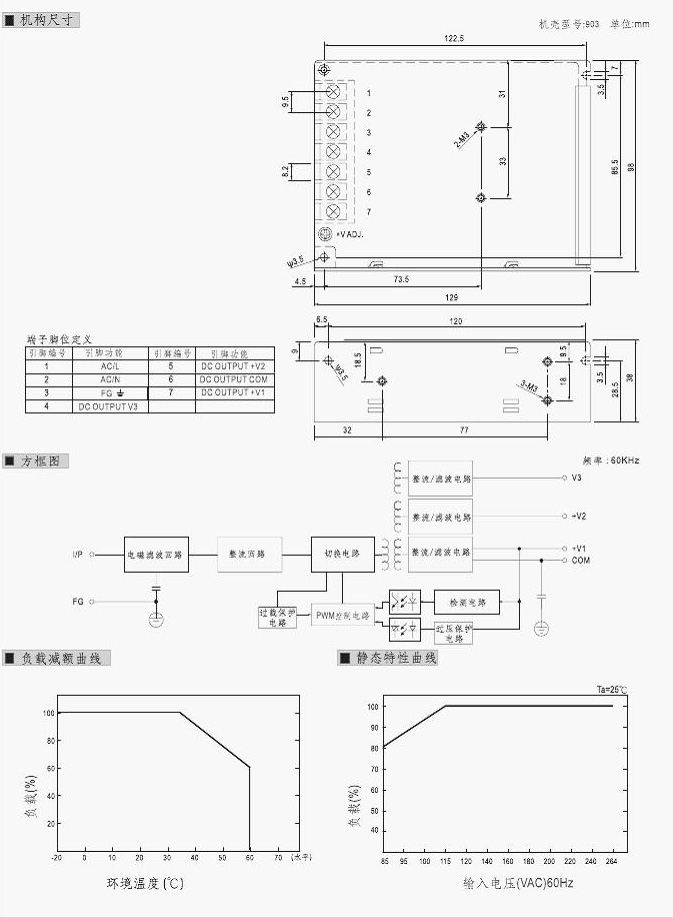

Measurement |
129*98*38mm(L*W*H) |
||||||||||||
Packing |
0.44k.g;30pcs、14.2k.g/0.72CUFT |
||||||||||||
Notes |
1. The testing condition for the parameter above is:230VAC input, rated load,25℃. |
