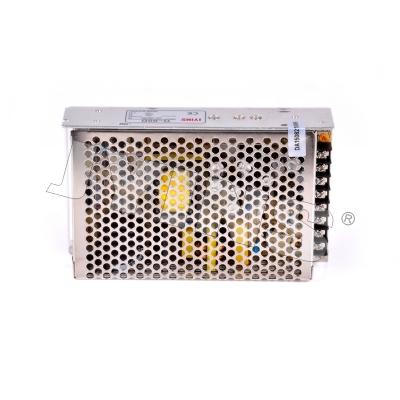

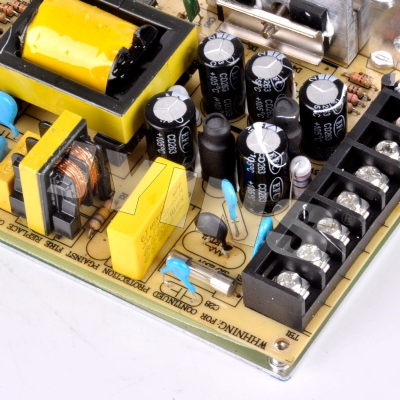

Q-60W

You are here: Home >> Industries & Products >> Switching power supply series >> Quad output series >> Q-60W
Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 Features:

High efficiency, high reliability
For AC power supply input global
Protection characteristics: short circuit/overload/pressure
Air cooling
Has the boot display (light emitting diode (led)
Working frequency 35 KHz
1 year warranty
Size: 159 * 97 * 38 mm (L * W * H)


Technical parameter:
model Q-60B Q-60C Q-60D
CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4
output Dc output voltage 5V 12V -5V -12V 5V 15V -5V -15V 5V 12V 24V -12V
Output voltage tolerance ±2% ±6% ±5% ±5% ±2% +8,-4% ±5% ±5% ±2% ±6% +8,-4% ±5%
Rated output current 5.5A 2A 0.5A 0.5A 5.5A 1.5A 0.5A 0.5A 4A 1A 1A 0.5A
Output current range 0.5-8A 0.1-3A 0-1A 0-1A 0.5-8A 0.1-3A 0-1A 0-1A 0.5~8A 0.1~3A 0.1~1.5A 0~1A
Output power 60W 60W 62W
Ripple and the noise 100 120 100 120 100 120 100 120 100 120 150 120
mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p mVp-p
Dc voltage adjustable scope CH1：-5%，+10%
Start, rise, keep time 1600ms,20ms,12ms/115VAC 800ms,20ms, 60ms/230VAC Loaded with
input Input voltage range 85～264 VAC 47-63Hz；120～370VDC
Exchange input current 2A/115 V 0.8A/ 230 V
efficiency 70% 72% 75%
Impulse current Cold start current
18A/115V 36A/230V
Leakage current ＜1 mA/240VAC
protection characteristics Overload protection 105%～150% /115VAC
Protection way: cut output, intermittent automatic recovery
Overvoltage protection 5V:115%～135%
Protection way: hiccups, auto recovery mode
environment Working temperature, humidity -10℃～+60℃；20%～90 %RH
Keep temperature, humidity -20℃～+85℃；10%～95 %RH
Vibrate resistance 10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security Compression sex 3: KVAC between input and output input and ground:
1.5KVAC Output and to
：0.5KVAC
Insulation resistance Between the input and output, the input and output, and ground:
100M Ohms/500VDC
Accord with standard Safety standards Accord with
UL60950
EMC standard 符合EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204
other weight 0.56Kg
packaging 30pcs/17.3Kg/0.99CUFT
note 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
5. Specific output current see output drop forehead curve.

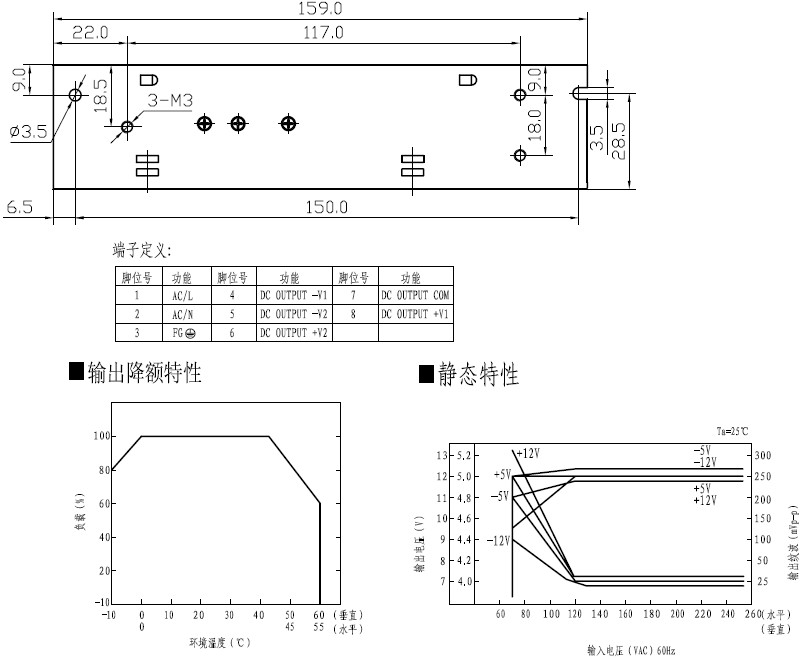

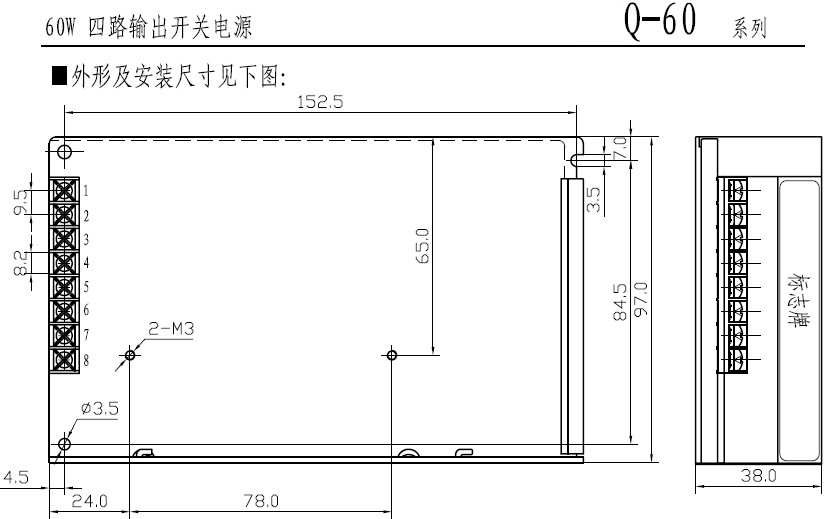

Installation dimensions:
