Features:
High efficiency, high reliability
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload/pressure
Working frequency 25 KHz
1 year warranty

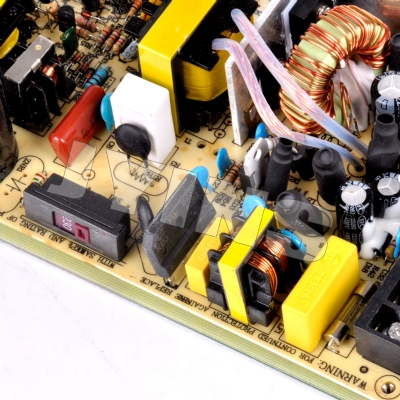

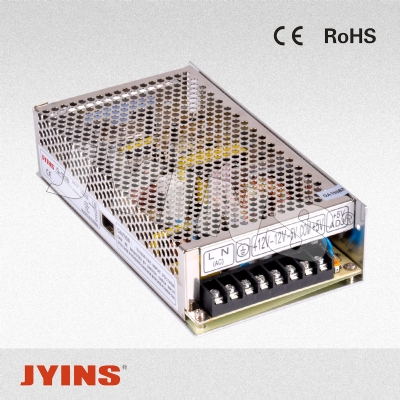

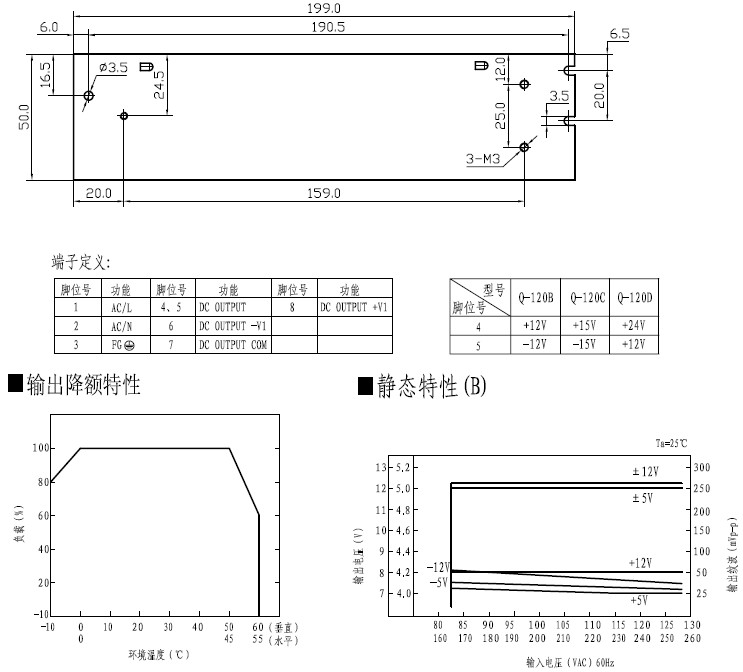

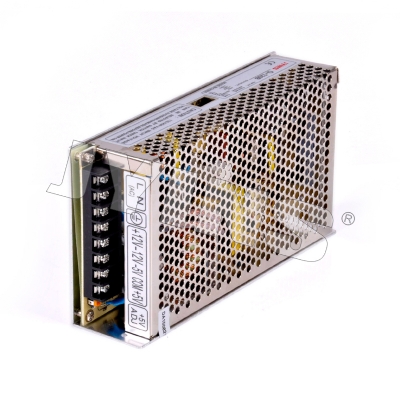

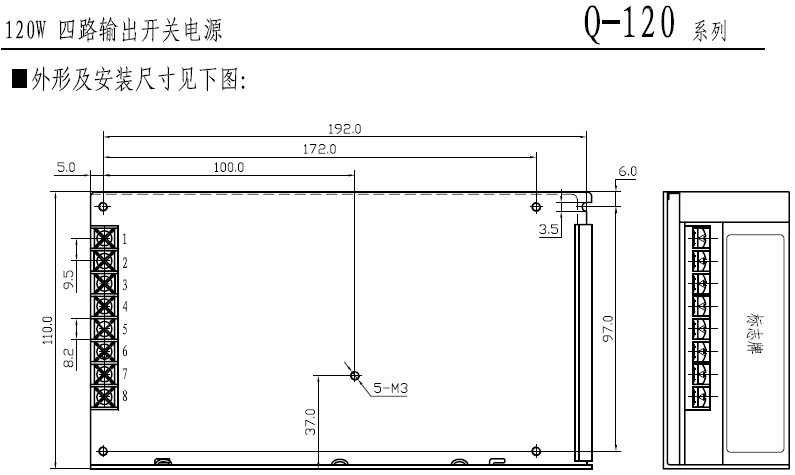

Size: 199 * 110 * 50 mm (L * W * H)
| model | Q-120B | Q-120C | Q-120D | ||||||||||
| CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | ||
| output | Dc output voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
| Output voltage tolerance (note 3) | ±2% | ±6% | ±6% | ±6% | ±2% | +10，-5% | ±6% | +10，-5% | ±2% | ±6% | ±6% | ±6% | |
| Rated output current (note 5) | 11A | 4A | 1A | 1A | 10A | 3.5A | 1A | 1A | 8A | 2A | 2A | 1A | |
| Output current range | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.2-5A | 0.2-2A | 0.2-1A | |
| Output power | 120W | 122.5W | 124W | ||||||||||
| Ripple and the noise (note 2) | 80mV | 120mV | 80mV | 120mV | 80mV | 150mV | 80mV | 150mV | 80mV | 120mV | 180mV | 120mV | |
| Dc voltage adjustable scope | CH1：-5%，+10% | ||||||||||||
| Start, rise, Keep time | 200ms, 50ms, 20ms Loaded with | ||||||||||||
| input | Input voltage range | 88～132 VAC / 176～264 VAC 47-63Hz；The switch choice | |||||||||||
| 240～370VDC | |||||||||||||
| Exchange input current | 2.8A/115 V 1.6A/ 230 V | ||||||||||||
| efficiency | 77% | 76% | 80% | ||||||||||
| Impulse current | Cold start current 35 A | ||||||||||||
| Leakage current | ＜3.5mA/240VAC | ||||||||||||
| Protection characteristics | Overload protection | 105%～135% | |||||||||||
| Protection way: cut output reset: restart | |||||||||||||
| Overvoltage protection | CH1:115%～135% | ||||||||||||
| Protection way: cut output reset: restart | |||||||||||||
| environment | Working temperature, humidity | -10℃～+60℃；20%～90 %RH | |||||||||||
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH | ||||||||||||
| Vibrate resistance | 10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis | ||||||||||||
| security | Compression sex | Input/output: 1.5 KVAC input and between to: | |||||||||||
| 1.5KVAC 输出与地：0.5KVAC | |||||||||||||
| Insulation resistance | Between the input and output, the input and output, and ground: | ||||||||||||
| 100M Ohms/500VDC | |||||||||||||
| Complies with the standards | Safety standards | Accord with | |||||||||||
| 1950,TUV EN60950 | |||||||||||||
| EMC Standard (note 4) | Accord with | ||||||||||||
| EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204 | |||||||||||||
| other | weight | 0.86Kg | |||||||||||
| packaging | 22pcs/19.2Kg/1.22CUFT | ||||||||||||
| note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. | ||||||||||||
| 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | |||||||||||||
| 3. The output of maximum current total load, but not more than maximum output power. | |||||||||||||
| 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. | |||||||||||||
| 5. Specific output current see output drop forehead curve. | |||||||||||||
