Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload
Air cooling
Working frequency 37 KHz
One year warranty

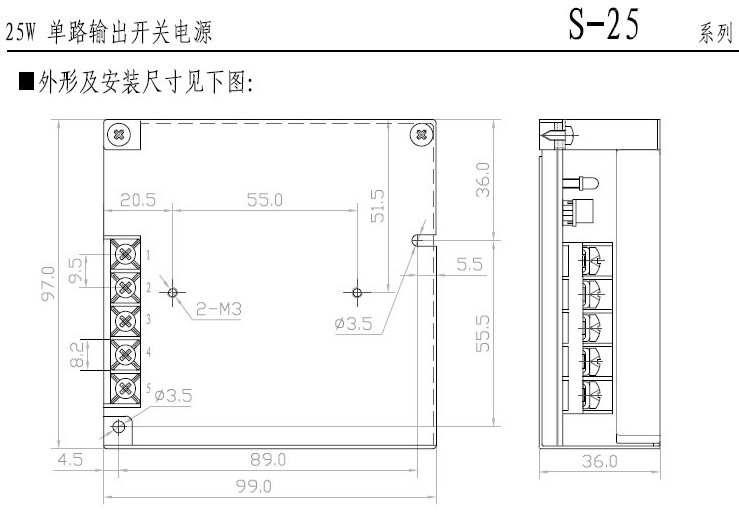

Size: 99 * 97 * 36 mm (L * W * H)
| Mode | S-25-5 | S-25-12 | S-25-15 | S-25-24 | |
| OUTPUT | Dc output voltage | 5V | 12V | 15V | 24V |
| Output voltage tolerance | ±2% | ±1% | ±1% | ±1% | |
| Rated output current | 5A | 2.1A | 1.7A | 1.1A | |
| Output current range | 0-5A | 0-2.1A | 0-1.7A | 0-1.1A | |
| Output power | 25W | 25.2W | 25.5W | 26.4W | |
| Ripple and the noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Dc voltage adjustable scope | +10,-5% | ±10% | ±10% | ±10% | |
| Start, rise, keep time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC Loaded with | ||||
| INPUT | Input voltage range | 85～264 VAC 47～ 63 Hz；120～370VDC | |||
| Exchange input current | 0.6 A/115 V 0.35A/ 230 V | ||||
| efficiency | 72%/115VAC | 76%/115VAC | 77%/115VAC | 80%/115VAC | |
| Impulse current | 冷启动电流15A/115V 30A/230V | ||||
| Leakage current | ＜0.75 mA/240VAC | ||||
| PROTECTION | Overload protection | 110%～160% cut off output . Fold back current limiting, recovers automatically | |||
| .... | |||||
| Overvoltage protection | 115%～135% | ||||
| Protection way: hiccups, auto recovery mode | |||||
| Environment | Working temperature, humidity | -10℃～+60℃；20%～90 %RH | |||
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH | ||||
| Vibrate resistance | 10 ~ 500 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis | ||||
| security | Compression sex | Between input and output | |||
| ：3KVAC Input and to | |||||
| ：1.5KVAC Output and to | |||||
| ：0.5KVAC | |||||
| Insulation resistance | Between the input and output, the input and output, and ground: | ||||
| 100M Ohms/500VDC | |||||
| Standard | Safety standards | Meet UL1012 | |||
| , TUV EN60950 | |||||
| EMC standards (note 4) | Accord with | ||||
| EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5；ENV50204，EN55024 | |||||
| Other | Weight | 0.28Kg | |||
| Packaging | 45pcs/13.2Kg/0.99CUFT | ||||
| Note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. | ||||
| 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | |||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | |||||
| 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. | |||||

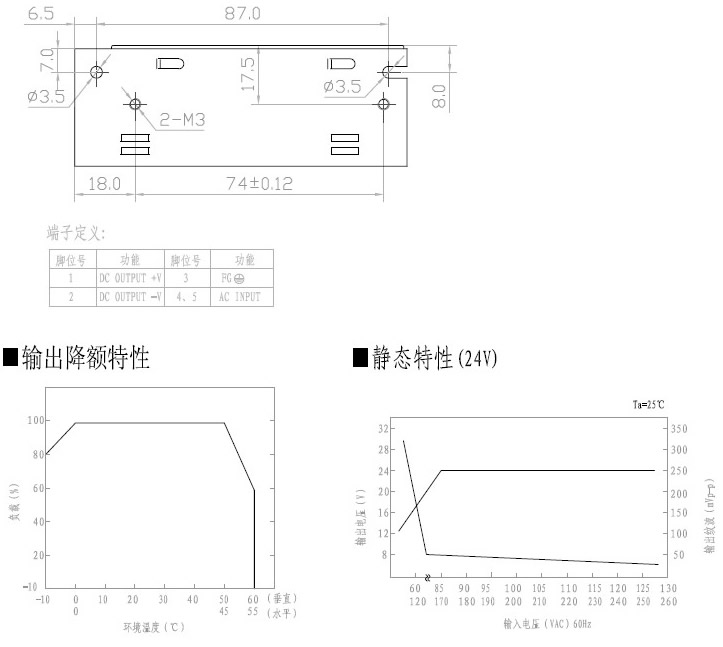

| 5. Specific output current see output drop forehead curve. | |||||
