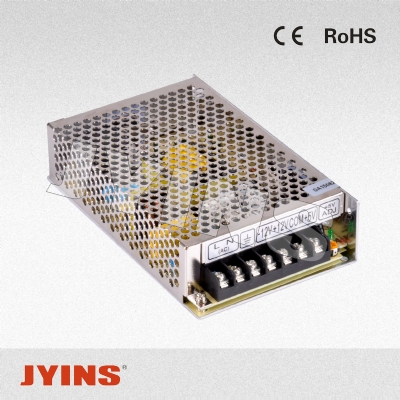

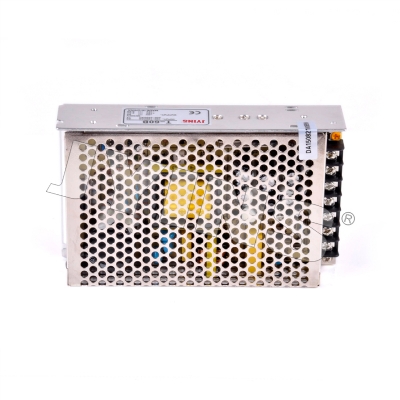

T-60W

You are here: Home >> Industries & Products >> Switching power supply series >> Triple output series >> T-60W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

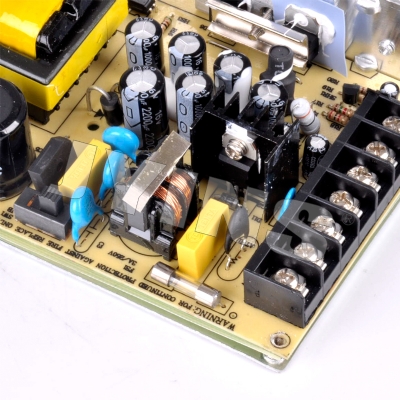

Features:

High efficiency, high reliability

For AC power supply input global

Protection characteristics: short circuit/overload/pressure

Air cooling

Has the boot display (light emitting diode (led)

Working frequency 50 KHz

1 year warranty

Size: 159 * 97 * 38 mm (L * W * H)

Technical parameter:

model		T-60A			T-60B			T-60C
		CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
output	Dc output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
	Output voltage tolerance	±2%	±6%	±6%	±2%	±6%	±6%	±2%	±6%	±6%
	Rated output current	5A	2.5A	0.5A	5A	2.5A	0.5A	5A	2A	0.5A
	Output current range	0.5-7A	0.2-3.5A	0-1A	0.5 -7A	0.2-3.5A	0-1A	0.5-7A	0.2-3A	0-1A
	Output power	57.5W			61W			62.5W
	Ripple and the noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Dc voltage adjustable scope	CH1：-5%，+10%
	Start, rise, keep time	300ms,50ms,10ms/230VAC 800ms, 50ms, 10ms/115VAC Loaded with
input	Input voltage range	85～264 VAC 47-63Hz；120～370VDC
	Exchange input current	2A/115 V 1A/ 230 V
	efficiency	69%			72%			72%
	Impulse current	Cold start current
		30A/115V 60A/230V
	Leakage current	＜3.5mA/240VAC
Protection characteristics	Overload protection	105%～150%
		Protection way: hiccups, auto recovery mode
	Overvoltage protection	5V：115%～135%
		Protection way: reset: auto recovery hiccups mode
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	3: KVAC between input and output and input and output KVAC: 1.5 to:
		0.5KVAC
	Insulation resistance	Between the input and output, the input and output, and ground:
		100M Ohms/500VDC
Complies with the standards	Safety standards	Accord with
		UL1012,UL60950, TUV EN60950
	EMC standard	Accord with
		EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
other	weight	0.55Kg
	packaging	30pcs/17Kg/0.99 CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
	5. Specific output current see output drop forehead curve.

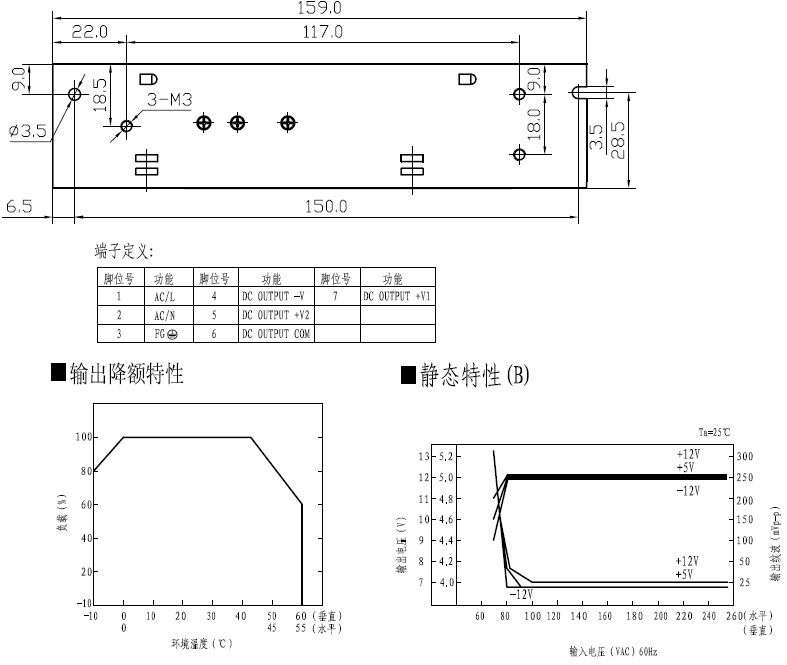

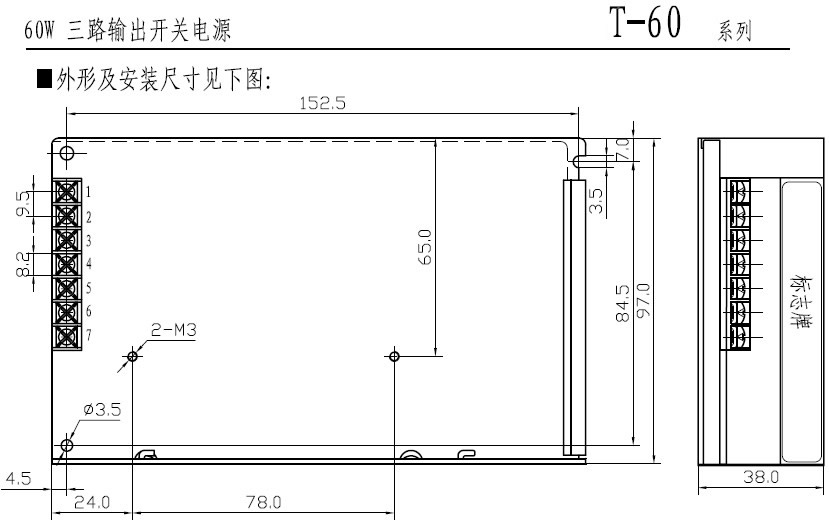

Installation dimensions:
