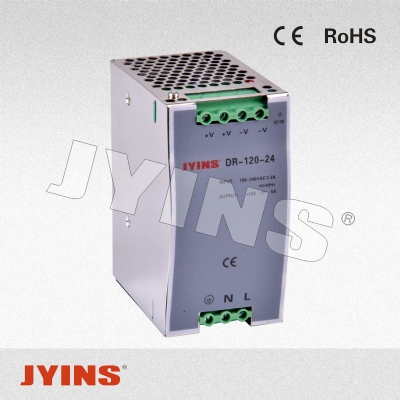

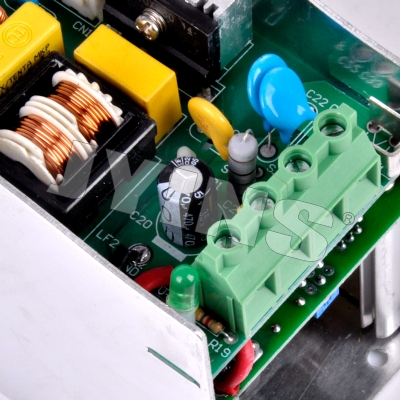

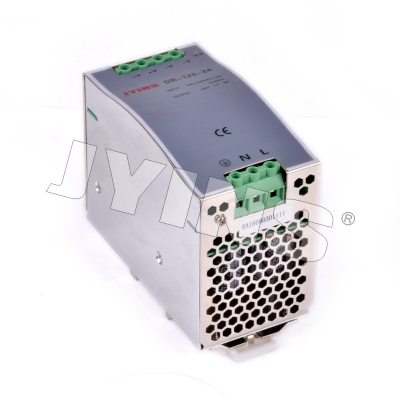

DR-120W

You are here: Home >> Industries & Products >> Switching power supply series >> Din Rail series >> DR-120W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

For AC power supply input global

Protection characteristics: short circuit/overload/pressure

Air cooling

Can be installed DIN standards guide TS-35/7.5 or 15

Has the boot display (light emitting diode (led)

100% full load and machine test

Working frequency 55 KHz

One year warranty

Size: 65.5 * 125.2 * 100 mm (W * H * D)

Technical parameter:

model		DR-120-12	DR-120-24	DR-120-48
output	Dc output voltage	12V	24V	48V
	Output voltage tolerance	±2%	±1%	±1%
	Rated output current	10A	5A	2.5A
	Output current range	0-10A	0-5A	0-2.5A
	Output power	120W	120W	120W
	Ripple and the noise	80mVp-p	80mVp-p	100mVp-p
	Dc voltage adjustable scope	12-14V	24-28V	48-53V
	Start, rise time	500 ms, 70 ms / 230 VAC carrying 500 ms, 70 ms / 115 VAC carrying
	Keep time	36 ms / 230 VAC32ms / 115 VAC carrying
input	Input voltage range	88～132 VAC/176~264VAC47～63 Hz；The switch choice 248～370VDC
	Exchange input current	2.6 A/115 V 1.6A/ 230 V
	efficiency	80%	84%	85%
	Impulse current	Cold start current 20A/115V 40A/230V
	Leakage current	＜3.5mA/240VAC
Protection characteristics	The switch choice	105%～150%
		Protection way: constant current limiting automatic recovery
	Overvoltage protection	120%~135%
		Protection way: cut output, restart
	High temperature protection	85℃±5℃(TSW1)	90℃±5℃(TSW1)	90℃±5℃(TSW1)
		Protection way: cut output, temperature down automatically restored
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security	Compression sex	3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC
	Insulation resistance	Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms
standard	Safety standards	UL508,UL60950-1，TUV EN60950-1
	EMC standard	EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2)
other	weight	0.79Kg
	packaging	20pcs/16.5Kg/1.1CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

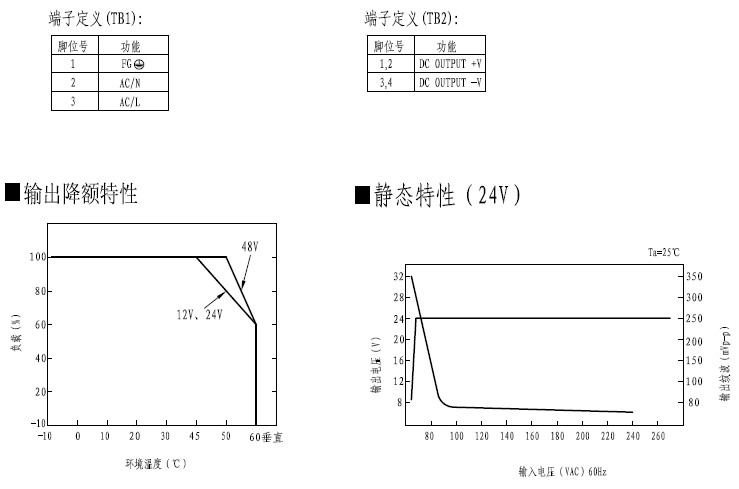

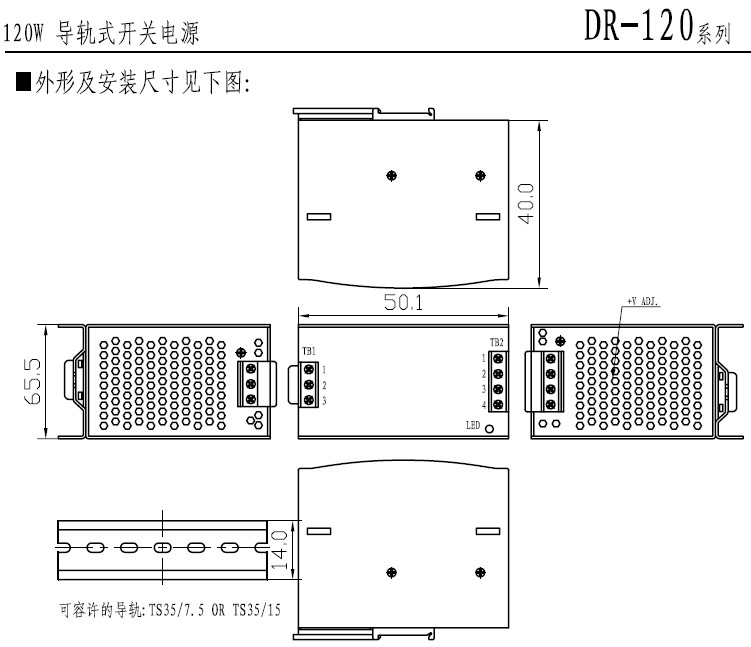

Installation dimensions:
