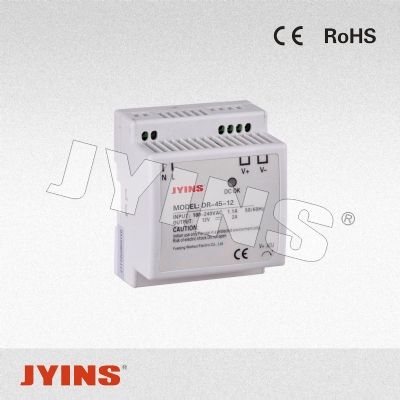

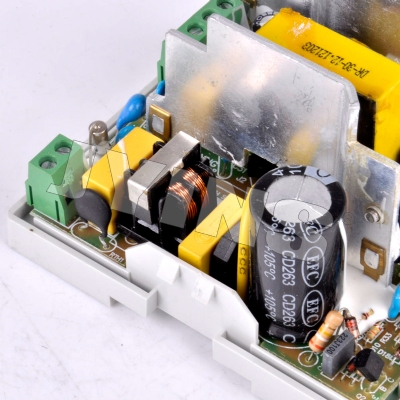

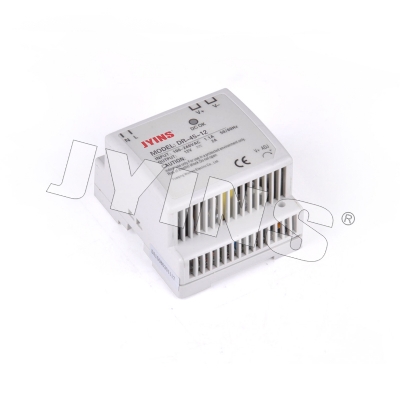

DR-45W

You are here: Home >> Industries & Products >> Switching power supply series >> Din Rail series >> DR-45W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

For AC power supply input global

Protection characteristics: short circuit/overload/pressure

Air cooling

Can be installed DIN standards guide TS-35/7.5 or 15

Has the boot display (light emitting diode (led)

100% full load and machine test

Technical parameter:

model		DR-45-5	DR-45-12	DR-45-15	HDR-45-24
output	Dc output voltage	5V	12V	15V	24V
	Output voltage tolerance	±2%	±1%	±1%	±1%
	Rated output current	5A	3.5A	2.8A	2A
	Output current range	0-5A	0-3.5A	0-2.8A	0-2A
	Output power	25W	42W	42W	48W
	Ripple and the noise	100mVp-p	200mVp-p	240mVp-p	480mVp-p
	Dc voltage adjustable scope	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
	Start, rise, keep time	800ms,60ms，100ms/230VAC Loaded with
input	Input voltage range	85～264 VAC47～63 Hz；choose 120～370VDC
	Exchange input current	1.5 A/115 V 0.75A/ 230 V
	efficiency	72%	77%	77%	80%
	Impulse current	Cold start current 28A/115V 56A/230V
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	105%～150%
		Protection way: constant current limiting automatic recovery
	Overvoltage protection	115%～135%
		Protection way: cut output, restart
	High temperature protection	Power tube to 135 ℃, the temperature drop, cut off output automatically after recovery
environment	Working temperature, humidity	-10℃～+50℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security	Compression sex	3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC
	Insulation resistance	Between the input and output, the input and output, and ground: 100M Ohms / 500VDC
Complies with the standards	Safety standards	Accord with UL508,TUV EN60950-1
	EMC standard	Accord with EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2
other	weight	0.31Kg
	packaging	48pcs/16.1Kg/1.3CUFT
备注	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

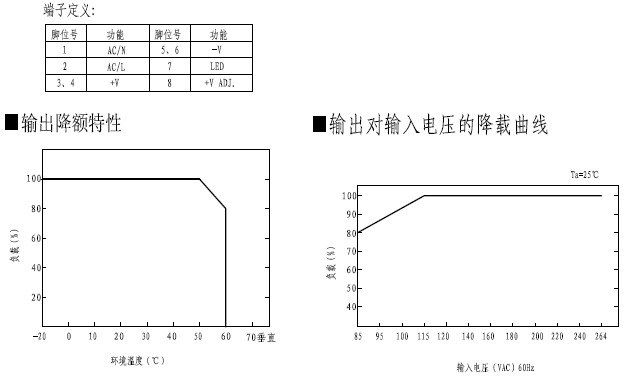

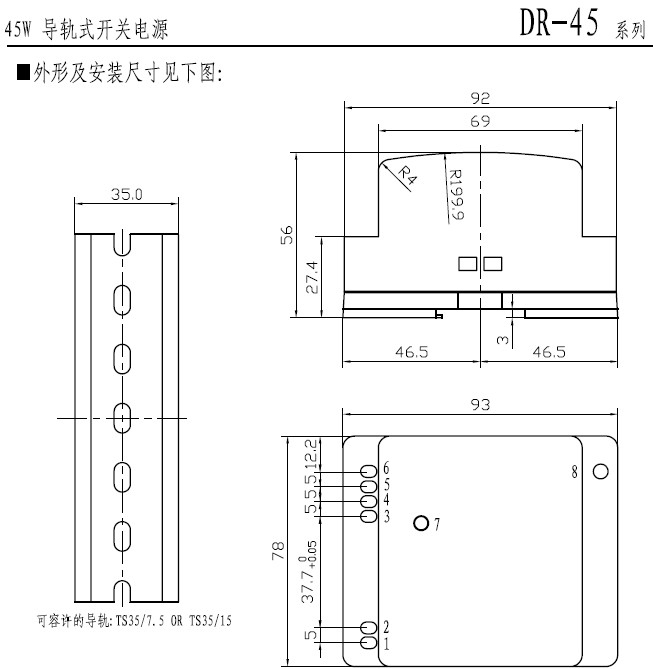

Installation dimensions:
