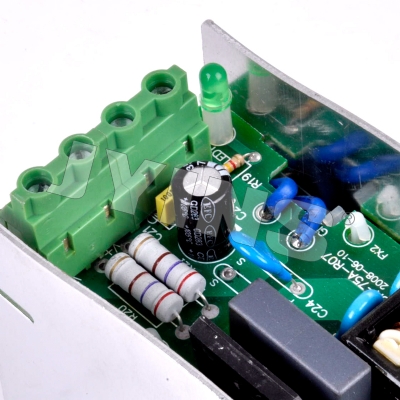

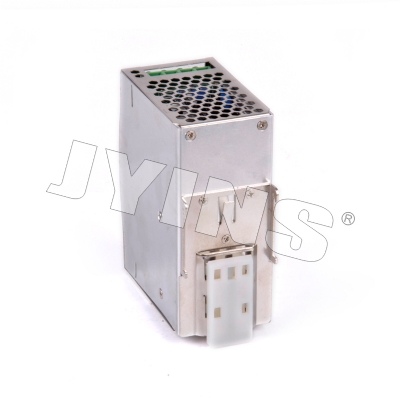

DR-75W

You are here: Home >> Industries & Products >> Switching power supply series >> Din Rail series >> DR-75W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

For AC power supply input global

Protection characteristics: short circuit/overload/pressure

Air cooling

Can be installed DIN standards guide TS-35/7.5 or 15

Has the boot display (light emitting diode (led)

100% full load and machine test

Working frequency 50 KHz

One year warranty

Size: 55.5 * 125.2 * 100 mm (W * H * D)

Technical parameter:

model		DR-75-12	DR-75-24	HDR-75-48
output	Dc output voltage	12V	24V	48V
	Output voltage tolerance	±2%	±1%	±1%
	Rated output current	6.3A	3.2A	1.6A
	Output current range	0-6.3A	0-3.2A	0-1.6A
	Output power	76W	76.8W	76.8W
	Ripple and the noise	100mVp-p	150mVp-p	240mVp-p
	Dc voltage adjustable scope	17%	17%	10%
	Start, rise time	1000ms,60ms/230VAC Loaded with 1800ms,60ms/115VAC Loaded with
	Keep time	60ms/230VAC12ms/115VAC Loaded with
input	Input voltage range	85～264 VAC choose 47～63 Hz；120～370VDC
	Exchange input current	1.6 A/115 V 0.96A/ 230 V
	efficiency	76%	80%	81%
	Impulse current	Cold start current 20A/115V 40A/230V
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	105%～150%
		Protection way: constant current limiting automatic recovery
	Overvoltage protection	120%~140%
		Protection way: hiccups, auto recovery mode
	High temperature protection	TSW1≥85℃±5℃，
		Protection way: cut output, temperature down automatically restored
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10 ~ 500 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis
security	Compression sex	3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC
	Insulation resistance	Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms
Complies with the standards	Safety standards	符合UL508,TUV EN60950-1
	EMC standard	EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2
other	weight	0.6Kg
	packaging	20pcs/13Kg/1.1CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

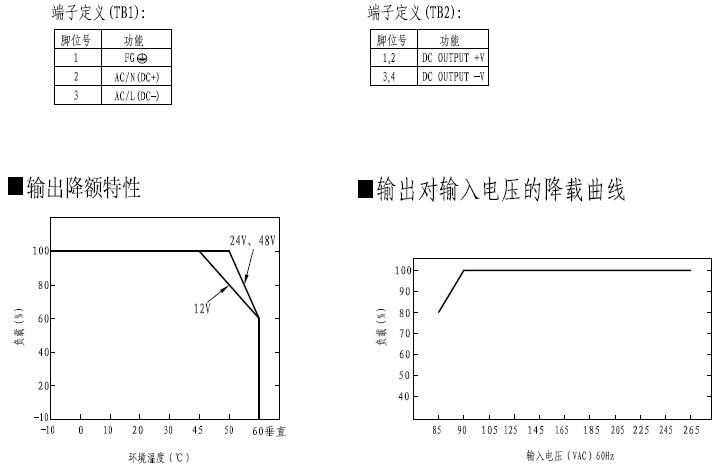

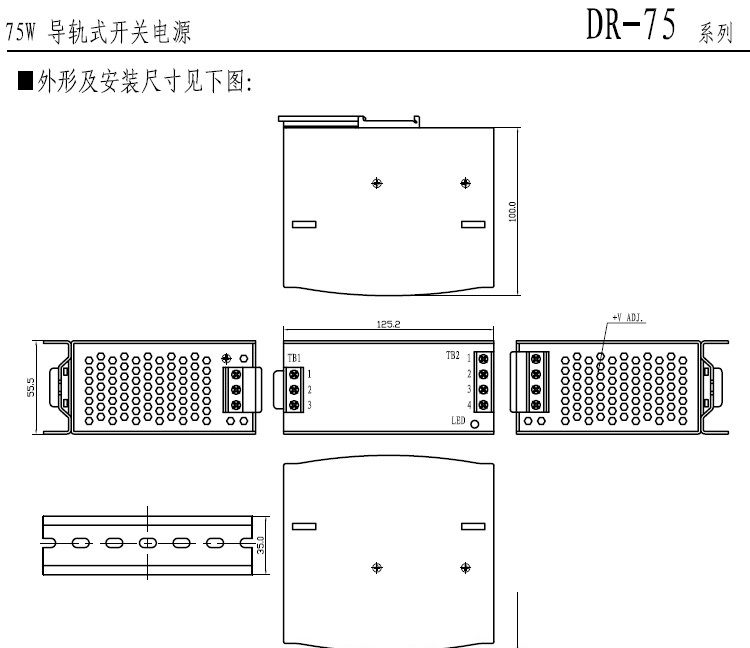

Installation dimensions:
