Feature：

● Constant voltage mode power supply
● 170～264V AC input
● Compact size, light weight, high efficiency
● Short-circuit /overload/ overpressure/ over temperature protection
● air cooling
● comply with IP67 class
● 100% full-load burning test

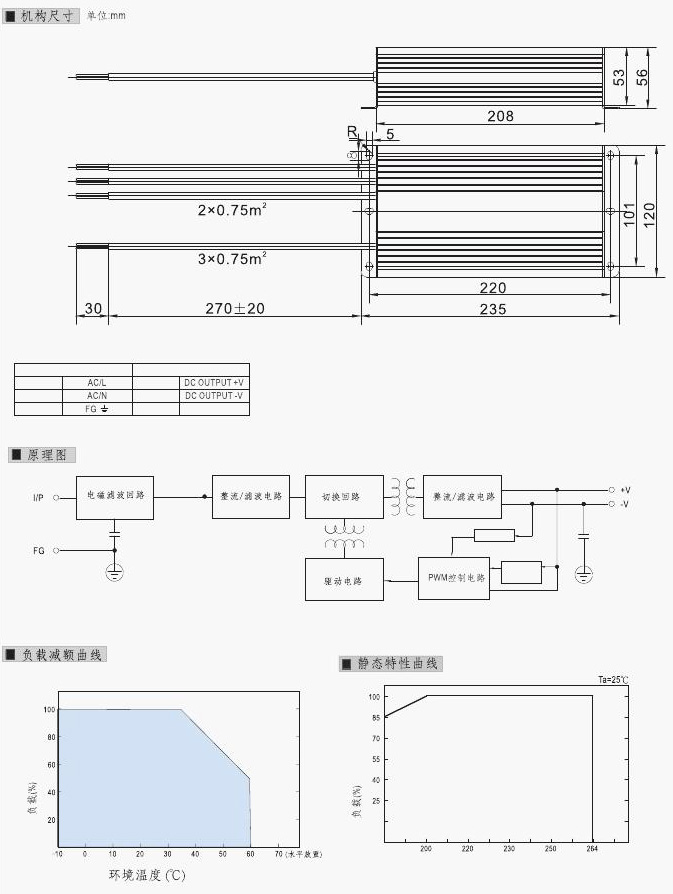

●Measurement：235×120×56mm
● Two years quality warranty

Specification IP67

Model

LPV-200-12

LPV-200-24

LPV-200-36

Output

DC output voltage

12V

24V

36V

Output

Output voltage error

±1%

±1%

±1%

Output

Rated output current

16.5A

8.3A

5.5A

Output

Output current range

0～16.5A

0～8.3A

0～5.5A

Output

Output power

198W

199W

198W

Output

Wave and noise

150mVp-p

200mVp-p

200mVp-p

Output

Set up, rise, hold up time

200ms,20ms,30ms/230VAC

Input

Input voltage range

170～264VAC 47～63Hz，235～373VDC

import

AC input current

2.5A/230VAC

import

Efficiency

80%

82%

84%

import

Impulse current

Cold-start current 50A/230VAC

import

Leakage current

＜3.5mA/240VAC

Protection

Feature

Overload protection

Rated output power 115%～135% set overload protection

Protection Features

Overload protection

Protection type：cut down output, recovery the power .auto recovery

Protection

over temperature protection

Enclosure temperature≥85℃，set over temperature protection

Protection

Over-temperature protection

Protection type：Cutting output， temperature recovery. auto recovery

Condition

Working temperature and humidity

-10℃～+60℃;20%～90%RH (Reference derating curve)

Environment

Store temperature and humidity

-20℃～+85℃;10%～95%RH (No Condensation)

Environment

shock resistance

10～500Hz，2G 10min./1cycle，period for 60 min，each axes

Safety

Withstand voltage

Output and input interval：1.5KVAC Input enclosure：1.5KVAC Output enclosure：0.5KVAC

Safety

Isolation resistance

Output and input interval,Input and Output enclosure：100M Ohms/500VDC

Meet standards

Safety standards

Meet UL1012 IP67

Meet standards

EMC standards

Meet EN55022，CLASSA

Others

Weight

2.8kg 235*120*56（L*W*H）

Others

packing

2.8kg/9pcs/26.5kg

Notes：

1. The testing condition for the parameter above is:230VAC input, rated load,25℃.
2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&47uF capacitor short-circuit for interrupting
3. Error,include the setting error, current regulation and voltage regulation
