Feature: ● Constant voltage mode power supply Specification IP67 |
|||||||
Model |
LPV-250-12 |
LPV-250-24 |
LPV-250-36 |
||||
Output |
DC output voltage |
12V |
24V |
36V |
|||
Output voltage error |
±1% |
±1% |
±1% |
||||
Rated output current |
20A |
10A |
7A |
||||
Output current range |
0~20A |
0~10A |
0~7A |
||||
Output power |
240W |
240W |
252W |
||||
Wave and noise |
150mVp-p |
200mVp-p |
200mVp-p |
||||
Set up, rise, hold up time |
800ms,30ms,24ms/230VAC |
||||||
Input |
Input voltage range |
180~264VAC 47~63Hz,255~373VDC |
|||||
AC input current |
2.8A/230VAC |
||||||
Efficiency |
82% |
84% |
85% |
||||
Impulse current |
Cold-start current 50A/230VAC |
||||||
Leakage current |
<3.5mA/240VAC |
||||||
Protection Feature |
Overload protection |
Rated output power 105%~135% set overload protection |
|||||
Protection type:pulsing hiccup shut down abnormal overload condition. auto recovery |
|||||||
Overpressure protection |
6.2~7.5V |
15~17V |
30~32V |
||||
Protection type:pulsing hiccup shut down abnormal condition auto recovery |
|||||||
over temperature protection |
Enclosure temperature≥85℃,set temperature protection |
||||||
Protection type:Cutting output, temperature recovery. auto recovery |
|||||||
Condition |
Working temperature and humidity |
-10℃~+60℃;20%~90%RH ( Reference derating curve) |
|||||
Store temperature and humidity |
-20℃~+85℃;10%~95%RH (No Condensation) |
||||||
shock resistance |
10~500Hz,2G 10min./1cycle,period for 60 min,each axes |
||||||
Safety |
Withstand voltage |
Output and input interval:1.5KVAC Input enclosure:1.5KVAC Output enclosure:0.5KVAC |
|||||
Isolation resistance |
Output and input interval,Input and Output enclosure:100M Ohms/500VDC |
||||||
Meet standards |
Safety standards |
Meet UL1012 IP67 |
|||||
EMC standards |
Meet EN55022,CLASSA |
||||||
Others |
Weight |

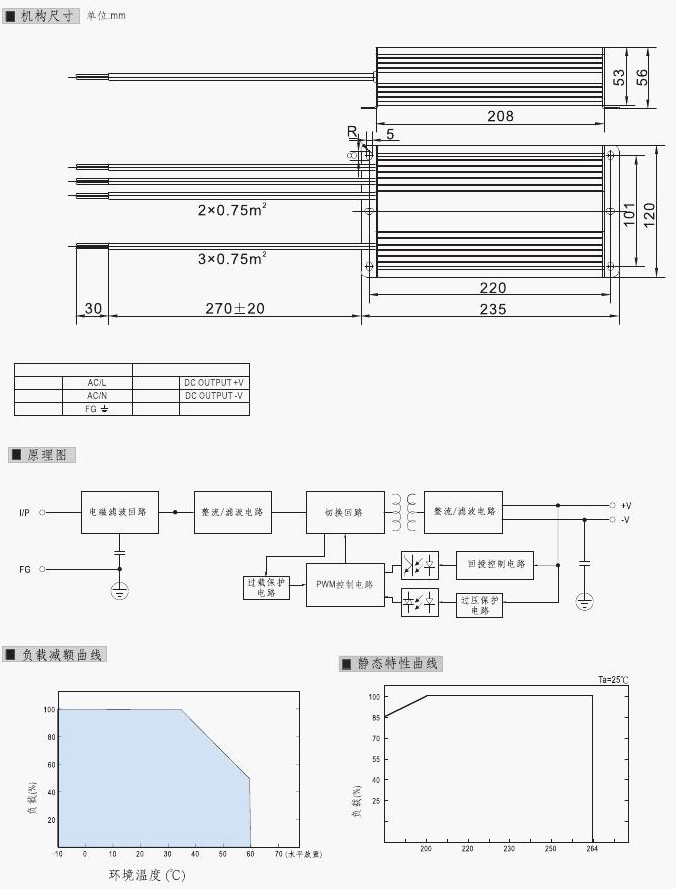

2.8kg 235*120*56(L*W*H) |
|||||
packing |
2.8kg/9pcs/26.5kg |
||||||
Notes: 1. The testing condition for the parameter above is:230VAC input, rated load,25℃. 2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&47uF capacitor short-circuit for interrupting 3. Error,include the setting error, current regulation and voltage regulation |
