Features:

1 and 0 had input voltage range

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload

Had air cooling

With that took on light emitting diode (led)

1 0, 0% had burned machine full load test

1 years had quality guarantee

vice size: 99 * 97 * 36 mm (L * W * H)

Technical parameter:

model		MS-15-5	MS-15-12	MS-15-24
output	Dc output voltage	5V	12V	24V
	Output voltage tolerance	±1%	±1%	±1%
	Rated output current	3A	1.3A	0.7A
	Output current range	0-3A	0-1.3A	0-0.7A
	Output power	15W	15.6W	16.8W
	Ripple and the noise	80mVp-p	120mVp-p	150mVp-p
	Dc voltage adjustable scope	+10,-5%	±10%	±10%
	Start, rise, keep time	200ms,50ms,20ms/230VAC
input	Input voltage range	170～264VAC 47～63Hz，235～373VDC
	Exchange input current	0.25A/230VAC
	efficiency	76%	76%	80%
	Impulse current	Cold start current
		30A/230VAC
	Leakage current	＜0.5mA/240VAC
Protection characteristics	Overload protection	Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery

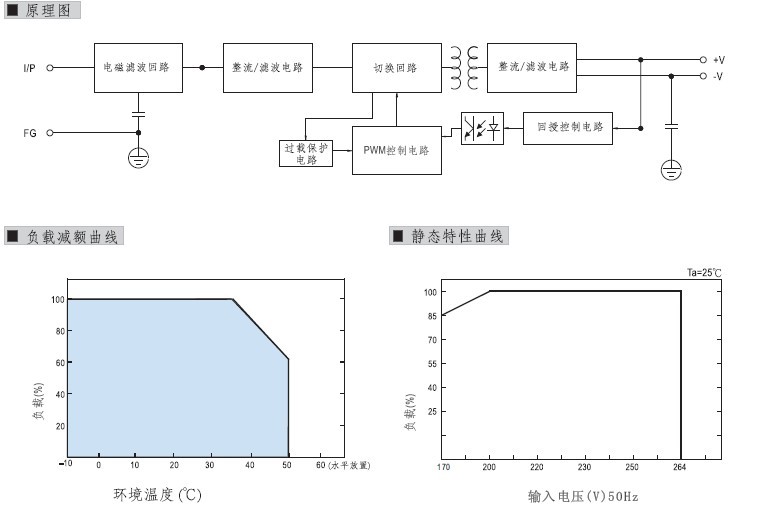

environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	Between the input and output, the output and input: with ground:
		100M Ohms/500VDC
	Insulation resistance	Between the input and output, the output and input: with ground:
		100M Ohms/500VDC
standard	Safety standards	Meet the UL1012 requirements
	EMC standard	Meet the FCC PART15J equipment conditions B
other	weight	0.15kg 845838（LWH）
	packaging	0.15kg/80pcs/13kg
note	1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

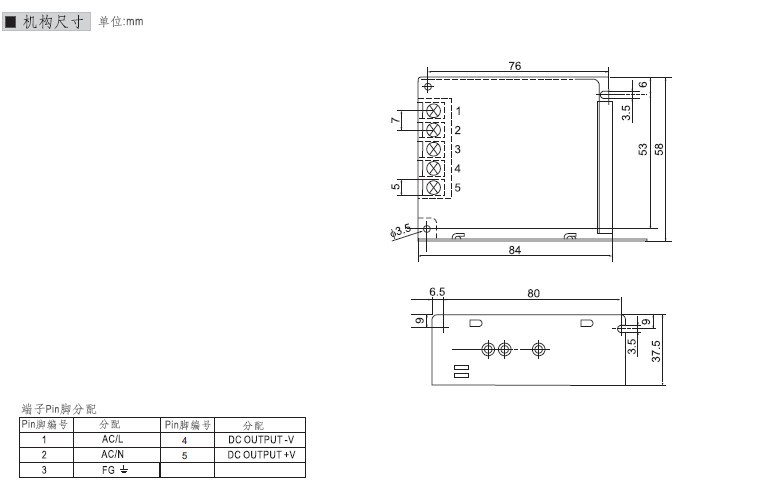

Installation dimensions:
