Features:

Had 170 ~ 264 VAC input voltage range

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload

Had natural cooling

With that took on light emitting diode (led)

1 0, 0% had burned machine full load test

1 years had quality guarantee

Size: 84 x 58 x 38 mm

Technical parameter:

model		MS-35-5	MS-35-12	MS-35-24
output	Dc output voltage	5V	12V	24V
	Output voltage tolerance	±1%	±1%	±1%
	Rated output current	5A	3.0A	1.5A
	Output current range	0～5A	0～3.0A	0～1.5A
	Output power	25W	36W	36W
	Ripple and the noise	80mVp-p	120mVp-p	120mVp-p
	Dc voltage adjustable scope	-9%～+10%	±10%	±10%
	Start, rise, keep time	800ms,20ms,24ms/230VAC.
input	Input voltage range	170～264VAC 47～63Hz，235～373VDC
	Exchange input current	0.45A/230VAC
	efficiency	76%	78%	80%
	Impulse current	Cold start current 30A/230VAC
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery

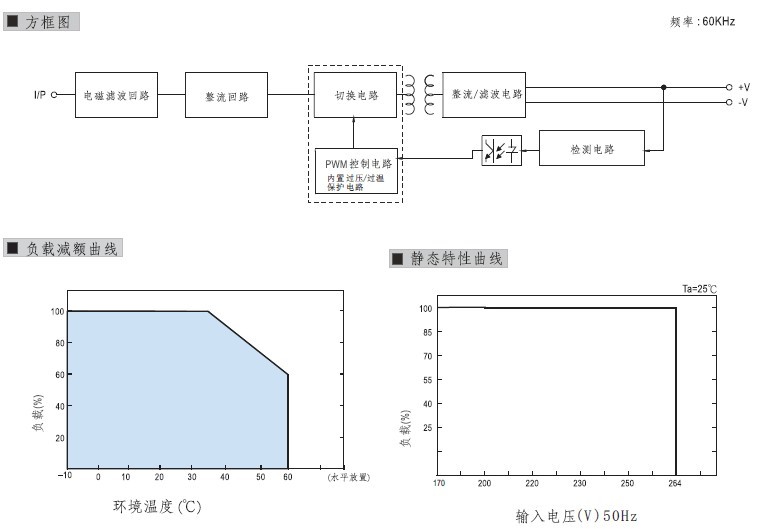

environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve )
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the output and input: with ground: 100 M / 500 VDC Ohms
Complies with the standards	Safety standards	Meet the UL1012 requirements
	EMC standard	Accord with
		EN55022，CLASSA
other	weight	0.17kg 845838（LWH）
	packaging	0.17kg/80pcs/14.5kg/0.9CUFT
note	1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

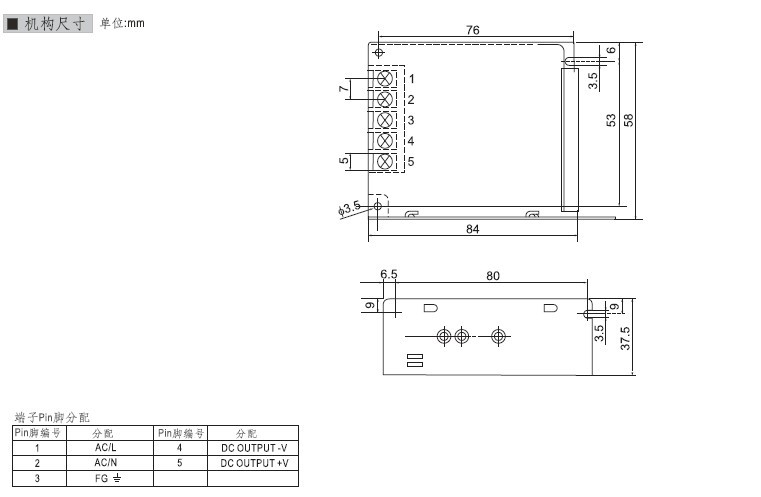

Installation dimensions:
