NES-100 Series
●Protection type :cutting-out/over-load/ over-voltage
●Nature air cooling
●LED power light
●100% full-load age test
●Two years quality warranty
Specification:
Model |
NES-100-5 |
NES-100-7.5 |
NES-100-9 |
NES-100-12 |
NES-100-15 |
NES-100-24 |
NES-100-48 |
|
Output |
DC output voltage |
5V |
7.5V |
9V |
12V |
15V |
24V |
48V |
Rated output current |
20A |
13.6A |
11.2A |
8.5A |
7A |
4.5A |
2.3A |
|
Output current range |
0-20A |
0-13.6A |
0-11.2A |
0-8.5A |
0-7A |
0-4.5A |
0-2.3A |
|
Rated output power |
100W |
102W |
100.8W |
102W |
105W |
108W |
110.4W |
|
Wave and noise |
80mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
Voltage adjustment range |
4.75-5.5V |
7.13-8.3V |
8.55-9.9V |
11.4-13.2V |
14.25-16.5V |
22.8-26.4V |
45.6-52.8V |
|
Voltage accuracy |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Linear adjust rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Over-load adjust rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Set up, rise time |
500ms,20ms/230VAC 500ms,20ms/115VAC(full load) |
|||||||
Hold up time |
30ms/230VAC 25ms/115VAC (full load) |
|||||||
Input |
Input voltage range |
85-132VAC or 248-373VAC Or 176-264VAC |
||||||
Frequency range |
47-63Hz |
|||||||
Efficiency |
80% |
81% |
81% |
83% |
84% |
86% |
86% |
|
AC current |
2A/115VAC 1.2A/230VAC |
|||||||
Inrush current |
Cold-start 36A |
|||||||
Leakage current |
<2mA/240VAC |
|||||||
Protection
|
Overload protection |
Rated output power 110%~150% set overload protection |
||||||
Protection type:pulsing hiccup,shut down abnormal condition. auto recovery |
||||||||
Over-voltage protection |
5.75-6.75V |
8.6-10.1v | 10.4-12.2V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4v | 55.2-64.8v | |
Protection type:pulsing hiccup, shut down voltage abnormal condition. auto recovery |
||||||||
Condition
|
Working temperature |
-20℃~+60℃ (Reference derating curve) |
||||||
Working humidity |
20℃~90℃RH (No Condensation) |
|||||||
Store temperature and humidity |
-40℃~+85℃;10%~95%RH |
|||||||
Temperature factor |
±0.03%/℃(0-45℃) |
|||||||
shock resistance |
10~500Hz,2G 10min./1cycle,period for 60 min,X、Y、Z axes |
|||||||
Safety and electromagnetic compatibility
|
Safety standard |
UL60950-1,CB(EN60950)-1, pass GB4943 |
||||||
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC |
|||||||
Electromagnetic interference |
EN55022(CISPR22) Class B, GB9254 Class |
|||||||
Harmonic current |
EN61000-3-2,-3 |
|||||||
Electronmagnetic stamina |
EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1 |
|||||||
Others |
MTBF |
≥320.72Khrs, MIL-HDBK-217F(25℃) |
||||||

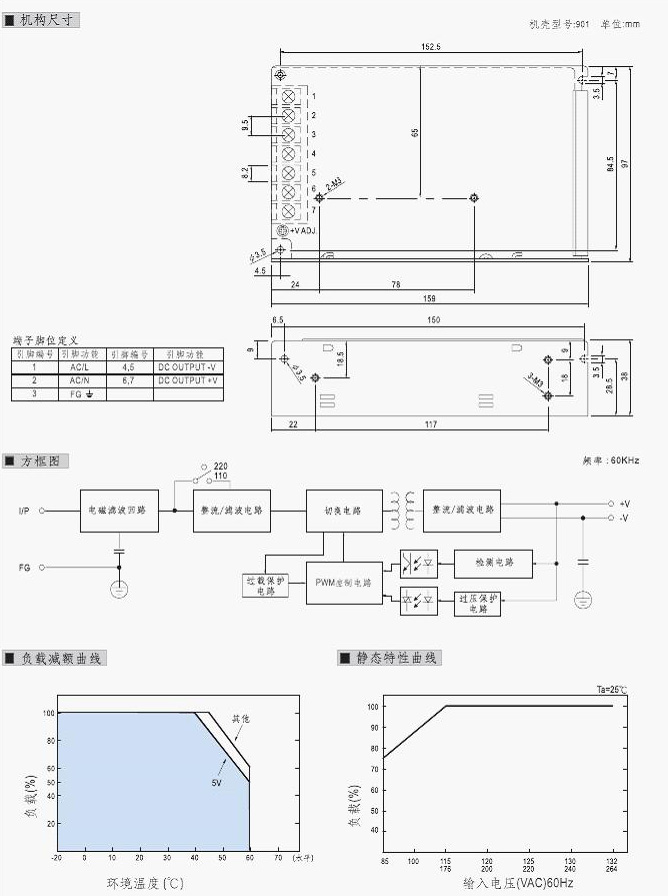

Measurement |
159*97*38mm(L*W*H) |
|||||||
Packing |
0.55k.g;30pcs,17.5k.g/0.97CUFT |
|||||||
Notes |
1. The testing condition for the parameter above is:230VAC input, rated load,25℃. |
