NES-150 Series
●High efficiency, long age, high reliable
●AC input though the switch control
●Protection type :cutting-out/over-load/ over-voltage
●Nature air cooling
●LED power light
●100% full-load age test
●Two years quality warranty
Specification:
Model |
NES-150-3.3 |
NES-100-5 |
NES-150-7.5 |
NES-150-9 |
NES-150-12 |
NES-150-15 |
NES-150-4-24 |
NES-150-48 |
|
Output |
DC output voltage |
3.3V |
5V |
7.5V |
9V |
12V |
15V |
24V |
48V |
Rated output current |
30A |
26A |
20A |
16.7A |
12.5A |
10A |
6.5A |
3.3A |
|
Output current range |
0-30A |
0-26A |
0-20A |
0-16.7A |
0-12.5A |
0-10A |
0-6.5A |
0-3.3A |
|
Rated output power |
99W |
130W |
150W |
150W |
150W |
150W |
156W |
158.4W |
|
Wave and noise |
80mVp-p |
80mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
200mVp-p |
|
Voltage adjustment range |
3.2-3.5V |
4.75-5.5V |
7.13-8.3V |
8.55-9.9V |
11.4-13.2V |
14.25-16.5V |
22.8-26.4V |
45.6-52.8V |
|
Voltage accuracy |
±3.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Linear adjust rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Over-load adjust rate |
±2.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Set up, rise time |
800ms,20ms/230VAC 1200ms,30ms/115VAC(full load) |
||||||||
Hold up time |
24ms/230VAC 20ms/115VAC (full load) |
||||||||
Input |
Input voltage range |
90-132VAC or 254-373VAC Or 180-264VAC |
|||||||
Frequency range |
47-63Hz |
||||||||
Efficiency |
73% |
78% | 80% | 83% | 83% | 83% | 86% | 86% | |
AC current |
3A/115VAC 2A/230VAC |
||||||||
Inrush current |
Cold-start 45A |
||||||||
Leakage current |
<2mA/240VAC |
||||||||
Protection
|
Overload protection |
Rated output power 110%~150% set overload protection |
|||||||
Protection type:pulsing hiccup,shut down abnormal condition. auto recovery |
|||||||||
Over-voltage protection |
3.8-4.25V |
5.75-6.75V | 8.6-10.1v | 10.4-12.2V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 55.2-64.8 | |
Protection type:pulsing hiccup, shut down voltage abnormal condition. auto recovery |
|||||||||
Condition
|
Working temperature |
-20℃~+60℃ (Reference derating curve) |
|||||||
Working humidity |
20℃~90℃RH (No Condensation) |
||||||||
Store temperature and humidity |
-40℃~+85℃;10%~95%RH |
||||||||
Temperature factor |
±0.03%/℃(0-45℃) |
||||||||
shock resistance |
10~500Hz,2G 10min./1cycle,period for 60 min,X、Y、Z axes |
||||||||
Safety and electromagnetic compatibility
|
Safety standard |
UL60950-1,CB(EN60950)-1, pass GB4943 |
|||||||
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC 70%RH |
||||||||
Electromagnetic interference |
EN55022(CISPR22) Class B, GB9254 Class |
||||||||
Harmonic current |
EN61000-3-2,-3 |
||||||||
Electronmagnetic stamina |
EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1 |
||||||||
Others |
MTBF |
≥433.3Khrs, MIL-HDBK-217F(25℃) |
|||||||

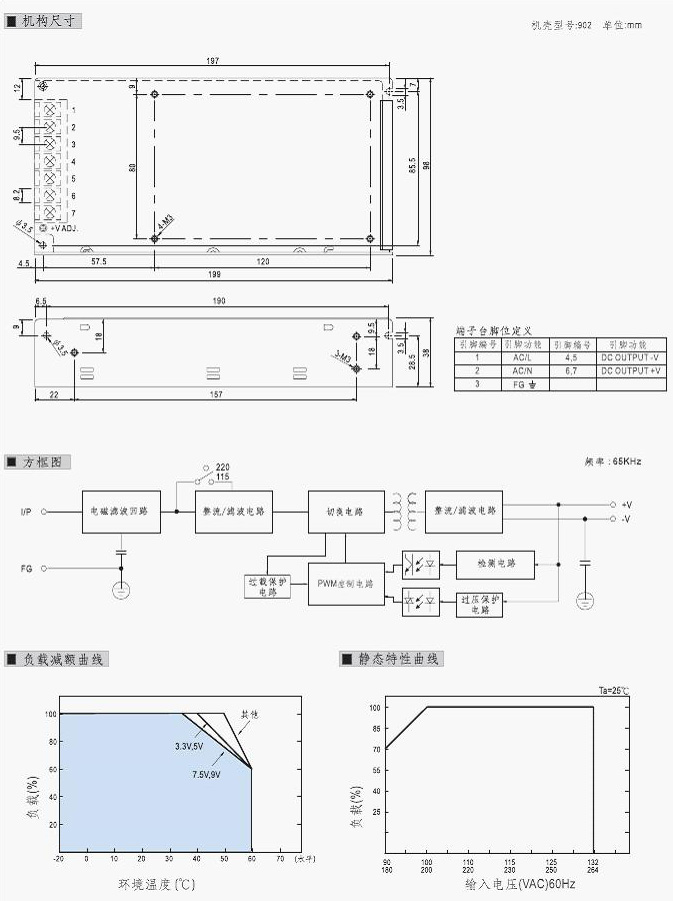

Measurement |
199*98*38mm(L*W*H) |
||||||||
Packing |
0.7k.g;20pcs,15k.g/0.72CUFT |
||||||||
Notes |
1. The testing condition for the parameter above is:230VAC input, rated load,25℃. |
