NES-200 Series
●High efficiency, long age, high reliable
●AC input though the switch control
●Protection type :cutting-out/over-load/ over-voltage
●Constant current limiting circuit
●Can withstand 300 vac surge input 5 seconds
●Nature air cooling
●LED power light
●100% full-load age test
●Two years quality warranty
Model
|
NES-200-3.3 |
NES-200-5 |
NES-200-7.5 |
NES-200-12 |
NES-200-15 |
NES-200-24 |
NES-200-27 |
NES-200-36 |
NES-150-48 |
|
Output |
DC output voltage |
3.3V |
5V |
7.5V |
12V |
15V |
24V |
27V |
36V |
48V |
Rated output current |
40A |
40A |
27A |
17A |
14A |
8.8A |
7.8A |
5.9A |
4.4A |
|
Output current range |
0-40A |
0-40A |
0-27A |
0-17A |
0-14A |
0-8.8A |
0-7.8A |
0-5.9A |
0-4.4A |
|
Rated output power |
132W |
200W |
202.5W |
204W |
210W |
211.2W |
210.6W |
212.4W |
211.2W |
|
Wave and noise |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
240mVp-p |
|
Voltage adjustment range |
2.97-3.7V |
4.5-5.6V |
6-9V |
10-13.5V |
13.5-18V |
20-26.4V |
26-32V |
32-40V |
41-56V |
|
Voltage accuracy |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Linear adjust rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Over-load adjust rate |
±1.5% |
±1.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Set up, rise time |
1000ms,50ms/230VAC 1000ms,50ms/115VAC(full load) |
|||||||||
Hold up time |
20ms/230VAC 16ms/115VAC (full load) |
|||||||||
Input |
Input voltage range |
90-132VAC or 254-370VAC Or 180-264VAC |
||||||||
Frequency range |
47-63Hz |
|||||||||
Efficiency |
75% |
79% | 82% | 85% | 85% | 87% | 88% | 89% | 89% | |
AC current |
4.5A/115VAC 2.5A/230VAC |
|||||||||
Inrush current |
40A/115VAC 55A/230VAC |
|||||||||
Leakage current |
<3.5mA/240VAC |
|||||||||
Protection
|
Overload protection |
Rated output power 105%~150% set overload protection |
||||||||
Protection type:pulsing hiccup,shut down abnormal condition. auto recovery |
||||||||||
Over-voltage protection |
3.8-4.9V |
5.75-6.75V | 9.4-10.9v | 13.8-16.2V | 18-21V | 27.6-32.4V | 33.7-39.2V | 41.4-46.8v | 57.6-67.2 | |
Protection type:Cut off output. auto recovery |
||||||||||
Condition
|
Working temperature |
-20℃~+50℃ (Reference derating curve) |
||||||||
Working humidity |
20℃~90℃RH (No Condensation) |
|||||||||
Store temperature and humidity |
-40℃~+85℃;10%~95%RH |
|||||||||
Temperature factor |
±0.03%/℃(0-45℃) |
|||||||||
shock resistance |
10~500Hz,3G 10min./1cycle,period for 60 min,X、Y、Z axes |
|||||||||
Safety and electromagnetic compatibility
|
Safety standard |
UL60950-1,CB(EN60950)-1, pass GB4943 |
||||||||
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC 70%RH |
|||||||||
Electromagnetic interference |
EN55022(CISPR22) Class B, GB9254 ClassB |
|||||||||
Harmonic current |
EN61000-3-2,-3 |
|||||||||
Electronmagnetic stamina |
EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1 |
|||||||||
Others |
MTBF |
≥271.9Khrs, MIL-HDBK-217F(25℃) |
||||||||
Measurement |

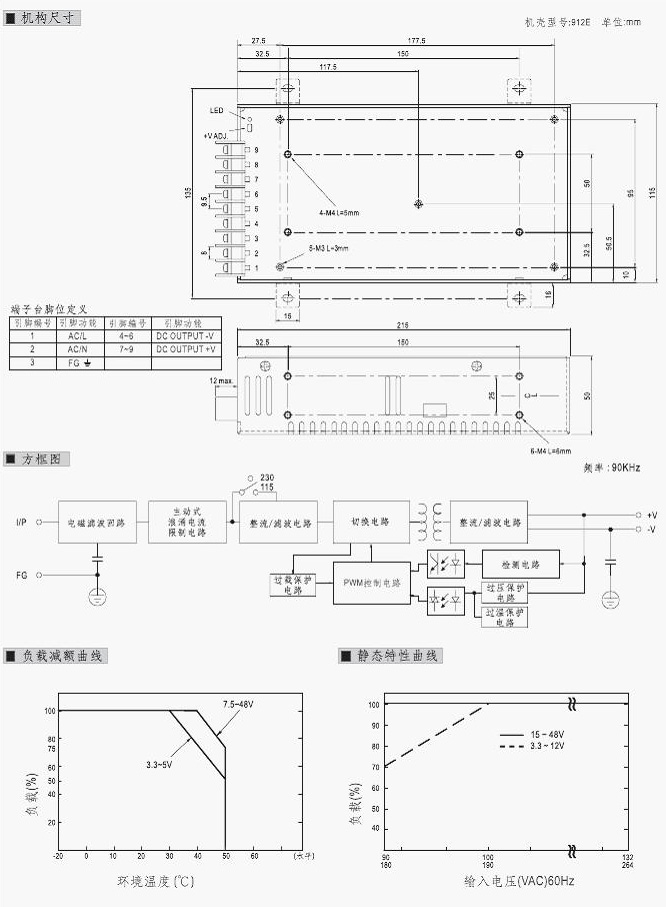

215*115*50mm(L*W*H) |
|||||||||
Packing |
0.93k.g;12pcs,12k.g/0.92CUFT |
|||||||||
Notes |
1. The testing condition for the parameter above is:230VAC input, rated load,25℃. |
