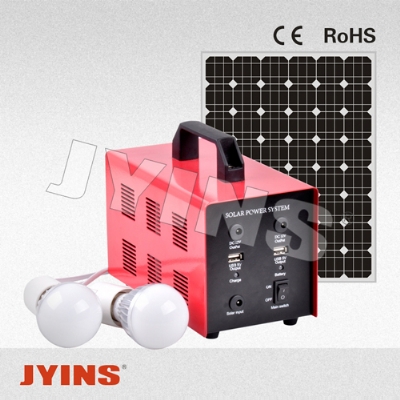

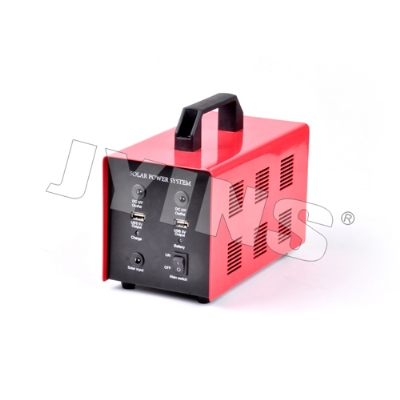

PRODUCT FEATURES
Integrated design for charging DC 12V power supply, lighting device ,5V digital products.
High efficient PWM charging technology, intelligent management of battery's charging and discharging.
Compact dimension, low weight, easy to carry.
It can be charged both by solar energy and city electricity.
SPECIFICATIONS
| Item | JYPS031 | JYPS031A | ||
| Solar Panel | 18V/10W--15W（Mono/Poly） | |||
| (Lead-acid Battery) | 12V/4.5AH*1Pcs Deep Cycle Free Maintenance | |||
| Adapter | No | 18V0.5A | ||
| Controller | PWM 12V/3A | |||
| Output Voltage | DC12V3A,USB5V1A | |||
| City Electricity Switching Time |
No | |||
| Charging Time | 5h by 10W Solar Panel with Sufficient Sunlight, 6.5h by City Electricity |
|||
| 3h by 15W Solar Panel with Sufficient Sunlight, 6.5h by City Electricity |
||||
| Operating Environment | 0-45℃ | |||
| System Case Size | 210*112*123mm | |||
| Packing Size | 250*150*285mm | |||
| Net Weight | 2.4 KG | |||
| Standard Cable Spec. | 5m DC Cable +DC Connector | |||
Load Capacity
| Appliance | Spec(W) | Qty(PCS) | Working Hour(h) | Power Consum ption(W.h) |
| Mobile Phone | 5 | 2 | 2 | 20 |
| LED Bulb | 2 | 2 | 2 | 8 |
| Fan | 10 | 1 | 1 | 10 |
| Total： | 38 |
