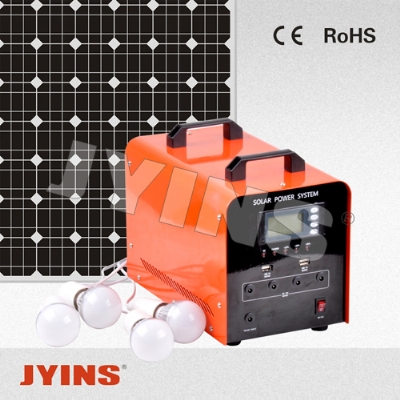

S040-75W Solar system

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 PRODUCT FEATURES

Integrated design for charging DC 12V power supply, lighting device ,5V digital products.

High efficient PWM charing technology, intelligent management of battery's charging and discharging.

Compact dimension, low weight, easy to carry.

It can be charged both by solar energy and city electricity.

SPECIFICATIONS

Item JYPS040 JYPS041
Solar Panel 18V/75W (mono/poly) 18V/150W (mono/poly)
Lead-acid Battery 12V/24AH*1Pcs Deep Cycle Free
Maintenance
12V/33AH*1Pcs Deep Cycle Free
Maintenance
Adapter Optional
Controller PWM 12V/10A
Output Voltage DC12V10A,USB5V1A
City Electricity
Switching Time
NO
Charging Mode PV Charging
Charging Time 3.5Hrs by 80W Solar Panel with
Sufficent Sunlight
2.5Hrs by 150W Solar Panel with Sufficent
Sunlight
Operating Environment 0-45℃
System Case Size 330*190*202mm
Packing Size 430*200*270mm
Net Weight 11.5 KG 12.7KG
Standard Cable Spec. 3m DC Cable + DC Connector
Battery External
Expansion
NO



Load Capacity

Appliance Spec(W) Qty(PCS) Working Hour(h) Power Consumption(W.h)
Mobile Phone 5 1 2 10
LED Bulb 2 2 4 16
Fan 10 1 3 30
TV 25 1 4 100
Refrigerator 20 1 6 120
Total       276
