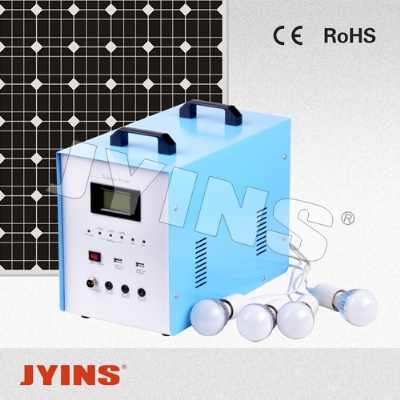

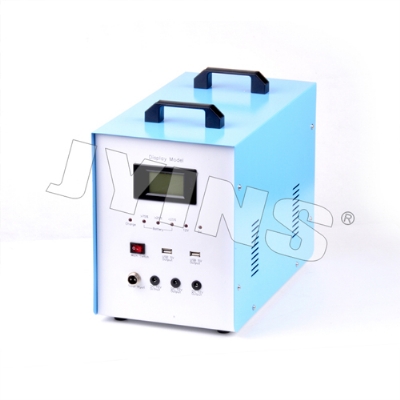

S038-200W Solar system

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 PRODUCT FEATURES

Integrated design for charging DC 12V power supply, lighting device ,5V digital products.

High efficient PWM charing technology, intelligent management of battery's charging and discharging.

Compact dimension, low weight, easy to carry.

It can be charged both by solar energy and city electricity.

SPECIFICATIONS

Item JYPS038 JYPS038A
Solar Panel 18V/100W -200W (Mono/Poly)
Lead-acid Battery 12V/50AH*1Pcs Deep Cycle Free Maintenance
Adapter NO 18V4.7A
Controller PWM 12V/10A
Output Voltage DC12V10A, USB5V1A
City Electricity Switching Time NO
Charging Mode PV Charging PV/City Electricity Charging
Charging Time 5 Hrs by 100W Solar Panel with Sufficient Sunlight,7h by City Electricity
2.5 Hrs by 200W Solar Panel with Sufficient Sunlight,7h by City Electricity
Operating Environment 0-45℃
System Case Size 353*199*264mm
Packing Size 400*230*400mm
Net Weight 19.3 KG
Standard Cable Spec. 5m DC Cable + DC Connector



Load Capacity

Appl iance Spec(W) Qty(PCS) Working Hour(h) Power Consumption(W.h)
Mobile Phone 5 2 2 20
LED Bulb 2 3 8 48
Fan 10 1 5 50
TV 25 1 8 200
Refrigerator 40 1 4 160
Total:       478
