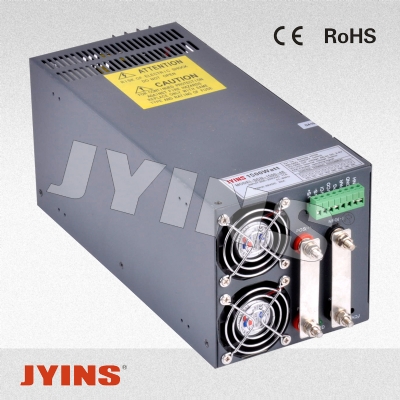

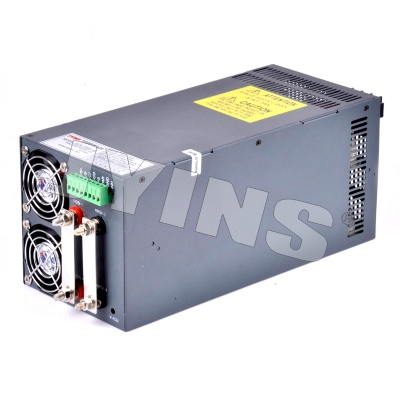

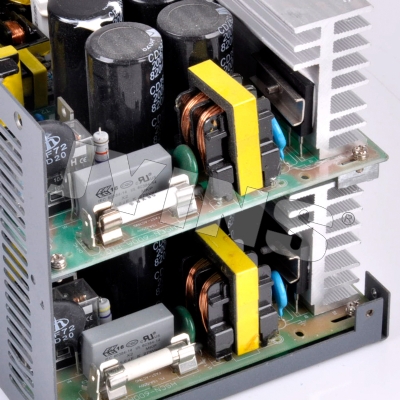

SCN-1500W

You are here: Home >> Industries & Products >> Switching power supply series >> Single output series >> SCN-1500W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High reliability, low ripple

Exchange the input voltage AC200 ~ 260 V

Protection characteristics: short circuit/overload/pressure/thermal

Built-in distance open/shutdown and voltage compensation signal interface

Has the parallel function

By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value

Built-in dc electric fan forced air cooling

One year warranty

Size : 291*132*132mm （L*W*H）

Technical parameter:

Model		SCN-1500-12	SCN-1500-15	SCN-1500-24	SCN-1500-48
output	Dc output voltage	12V	15V	24V	48V
	Output voltage tolerance	±1%	±1%	±1%	±1%
	Rated output current	125A	100A	62.5A	32A
	Output current range	0-125A	0-100A	0-62.5A	0-32A
	Output power	1500W	1500W	1500W	1536W
	Ripple and the noise	120mVp-p	150mVp-p	240mVp-p	480mVp-p
	Dc voltage adjustable scope	+ 5%; By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value
	Start, rise, keep time	800ms, 50ms, 16ms Loaded with
input	Input voltage range	200～260 VAC47～63 Hz；290～370VDC
	Exchange input current	12A/ 230 VAC
	efficiency	83%	84%	85%	87%
	Impulse current	120A/230V
	Leakage current	3.5 mA/240VAC
Protection characteristics	Overload protection	110%～135%
		Protection way: current limiting, delay shut off, restart
	Overvoltage protection	110%~135%
		Protection way: cut output, restart
	High temperature protection	TSW1 (power tube) temperature > 100 ℃, restart when cut off output
environment	Working temperature, humidity	-10℃～+65℃，20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃，10%～95 %RH
	Vibrate resistance	10～200Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	I/P-O/P, I/P-FG:1500VAC
	Insulation resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
standard	Safety standards	符合UL1950,CSA22.2,IEC60950
	EMC standard	符合FCC Part 15 Class A
other	weight	4.5Kg;
	包装	4pcs/20kg/CARTON

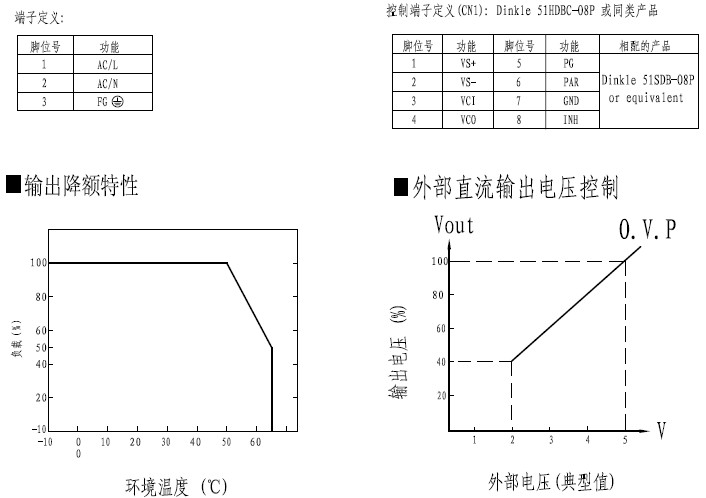

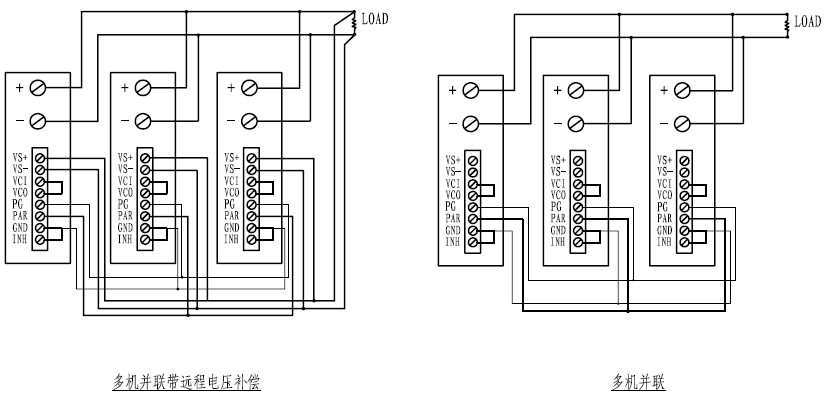

	特殊功能	Dc voltage is adjustable, remote control and voltage compensation, parallel, and series-parallel function interface (reference terminal instructions)
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

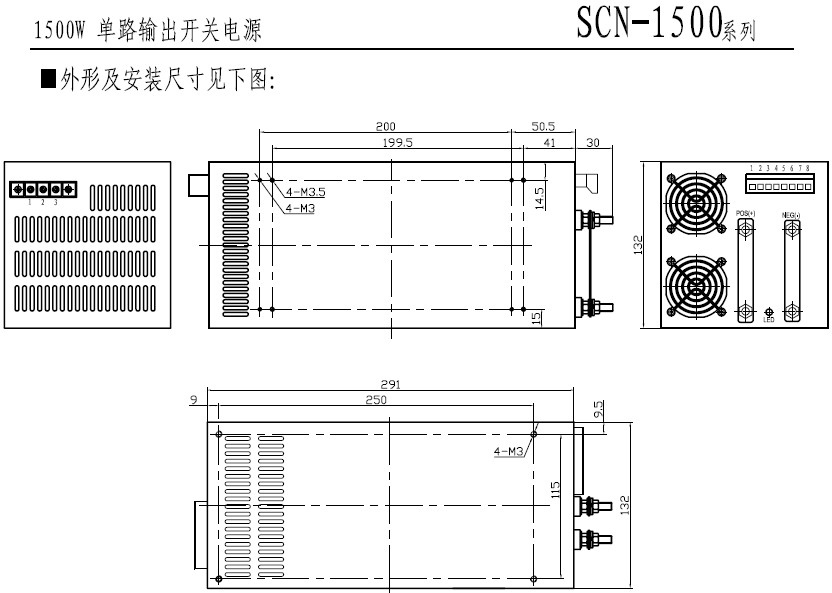

Installation dimensions:
