Features:
High efficiency, high reliability
For AC power supply input global
100% full load and machine test
Protection characteristics: short circuit/overload/pressure
Built-in dc electric fan forced air cooling
Built-in fan switch control
Working frequency 110 KHz
PFC correction, built-in distance open/shutdown and voltage compensation signal interface
1 year warranty

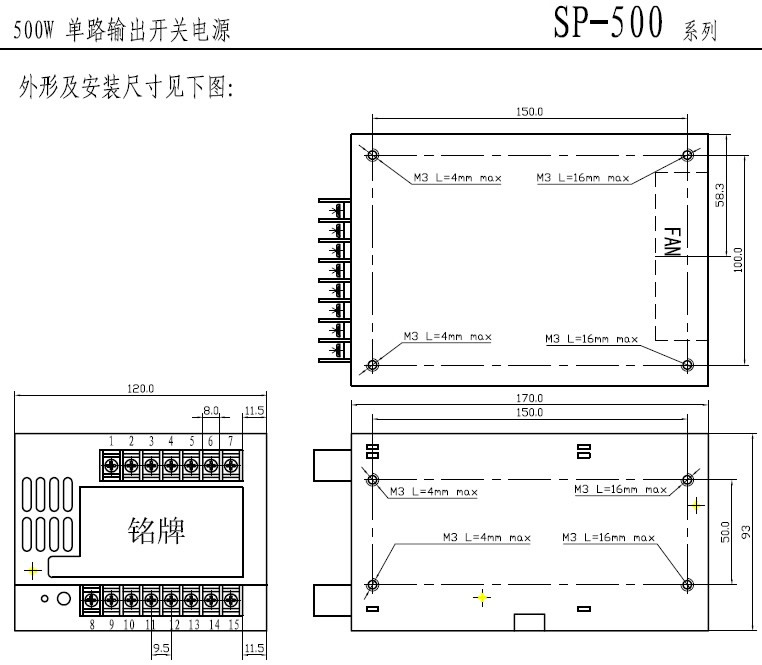

Size: 170*120*93mm（L*W*H）
| model | SP-500 | SP-500 | SP-500 | SP-500 | SP-500 | SP-500 | |
| -12 | -13.5 | -15 | -24 | -27 | -48 | ||
| output | Dc output voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 40A | 36A | 32A | 20A | 18A | 10A | |
| Output current range | 0-40A | 0-36A | 0-32A | 0-20A | 0-18A | 0-10A | |
| Output power | 480W | 486W | 480W | 480W | 486W | 480W | |
| Ripple and the noise | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p | |
| Dc voltage adjustable scope | -16%,+10% | -12%,+15% | -10%,+20% | -16%,+10% | -12%,+11% | -15%,+16% | |
| Start, rise, keep time | 1.5s,50ms,20ms Loaded with | ||||||
| input | Input voltage range | 88～264 VAC 47～63 Hz；124～370VDC | |||||
| Power factor | PF>0.95/230VAC PF>0.95/115VAC Loaded with | ||||||
| Exchange input current | 7A/115 V 3.5A/ 230 V | ||||||
| efficiency | 81% | 82% | 83% | 85.50% | 86.50% | 87% | |
| Impulse current | 18A/115V 36A/230V | ||||||
| Leakage current | ＜3.5mA/240VAC | ||||||
| Protection characteristics | Overload protection | 105%～135% | |||||
| Protection way: current limiting, automatic recovery | |||||||
| Overvoltage protection | 115%～135% | ||||||
| Protection way: hiccups, auto recovery mode | |||||||
| environment | Working temperature, humidity | -10℃～+50℃；20%～90 %RH | |||||
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH | ||||||
| Vibrate resistance | 10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis | ||||||
| security | Compression sex | 3: KVAC between input and output and input and output KVAC: 1.5 to: | |||||
| 0.5KVAC | |||||||
| Insulation resistance | Between the input and output, the input and output, and ground: | ||||||
| 100M Ohms/500VDC | |||||||
| standards | Insulation resistance | Accord with | |||||
| UL1950,TUV EN60950 | |||||||
| EMC standard | Accord with | ||||||
| EN55022，EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204 | |||||||
| other | weight | 1.9Kg | |||||
| packaging | 10pcs/19.5kg/1.22CUFT | ||||||
| note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. | ||||||
| Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | |||||||
| Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | |||||||
| The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. | |||||||

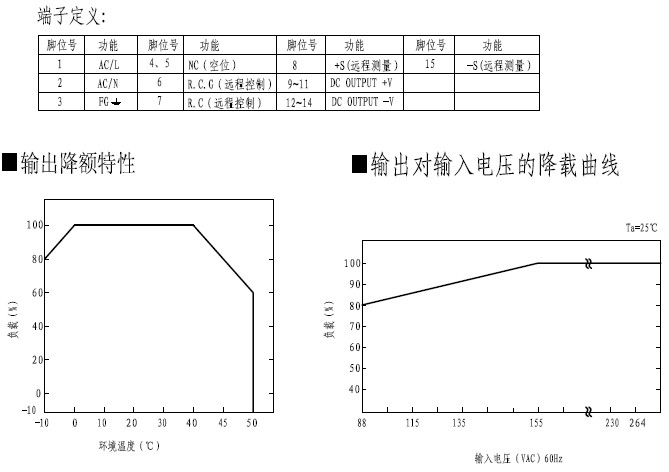

| Specific output current see output drop forehead curve. | |||||||
