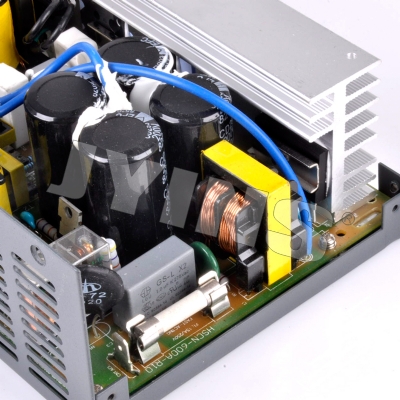

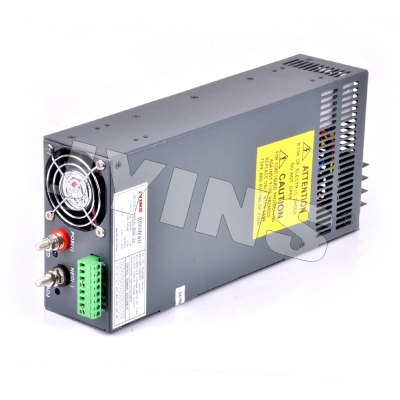

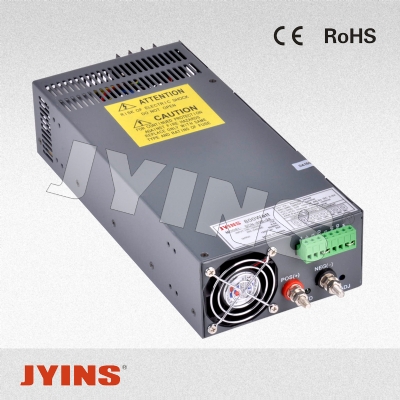

SCN-800W

You are here: Home >> Industries & Products >> Switching power supply series >> Single output series >> SCN-800W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High reliability, low ripple

Switch input voltage range choice

Protection characteristics: short circuit/overload/pressure/thermal

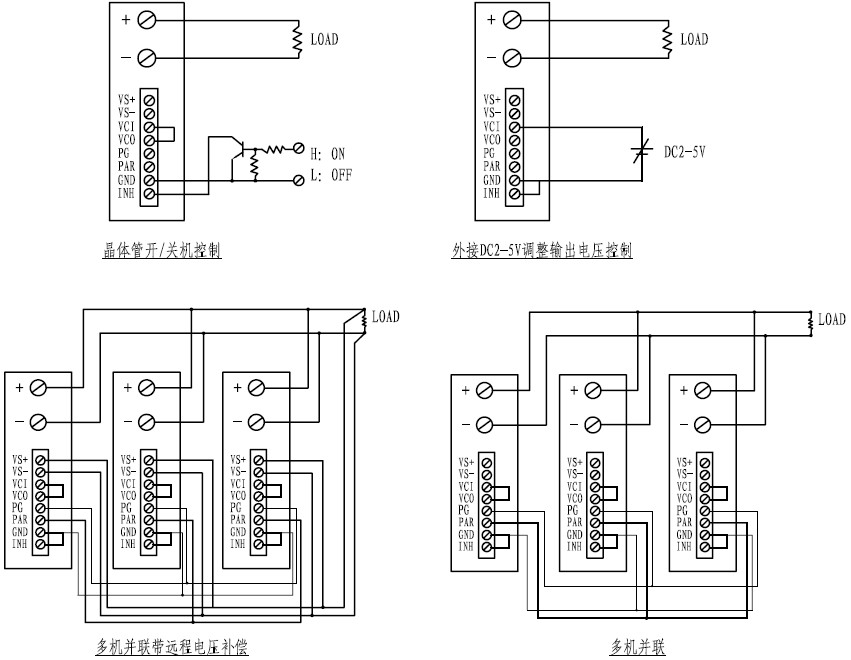

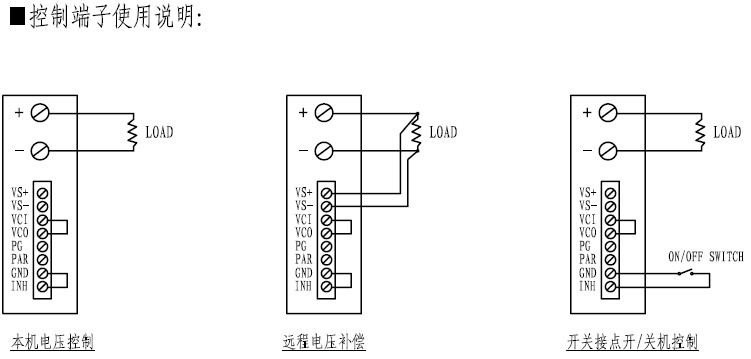

Built-in distance open/shutdown and voltage compensation signal interface

Has the parallel function

By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value

Built-in dc electric fan forced air cooling

One year warranty

Size : 291*132*68mm （L*W*H）

Technical parameter:

model		SCN-800-12	SCN-800-15	SCN-800-24	SCN-800-48
output	Dc output voltage	12V	15V	24V	48V
	Output voltage tolerance	±1%	±1%	±1%	±1%
	Rated output current	66A	54A	33A	16.6A
	Output current range	0-66A	0-54A	0-33A	0-16.6A
	Output power	800W	800W	800W	800W
	Ripple and the noise	150mVp-p	150mVp-p	240mVp-p	480mVp-p
	Dc voltage adjustable scope	+ 5%; By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value
	Start, rise, keep time	800ms, 50ms, 16ms Loaded with
input	Input voltage range	90～130VAC / 180～260 VAC47～63 Hz；The switch choice
		260～370VDC
	Exchange input current	13A/115 VAC 8.0A/ 230 VAC
	efficiency	80%	81%	85%	87%
	Impulse current	60A/230V
	Leakage current	3.5 mA/240VAC
Protection characteristics	Overload protection	110%～135%
		Protection way: current limiting, delay shut off, restart
	Overvoltage protection	110%~135%
		Protection way: cut output, restart
	High temperature protection	TSW1 (power tube) temperature > 100 ℃, restart when cut off output
environment	Working temperature, humidity	-10℃～+65℃，20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃，10%～95 %RH
	Vibrate resistance	10～200Hz，2G 10min.. / 1 cycle time, 60 minutes, the axis
security	Compression sex	I/P-O/P, I/P-FG:1500VAC
	Insulation resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
standards	Safety standards	Accord with
		UL1950,CSA22.2,IEC60950
	EMC standard	Accord with
		FCC Part 15 Class A
other	weight	2.3Kg;
	packaging	8pcs/24.0kg/CARTON
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

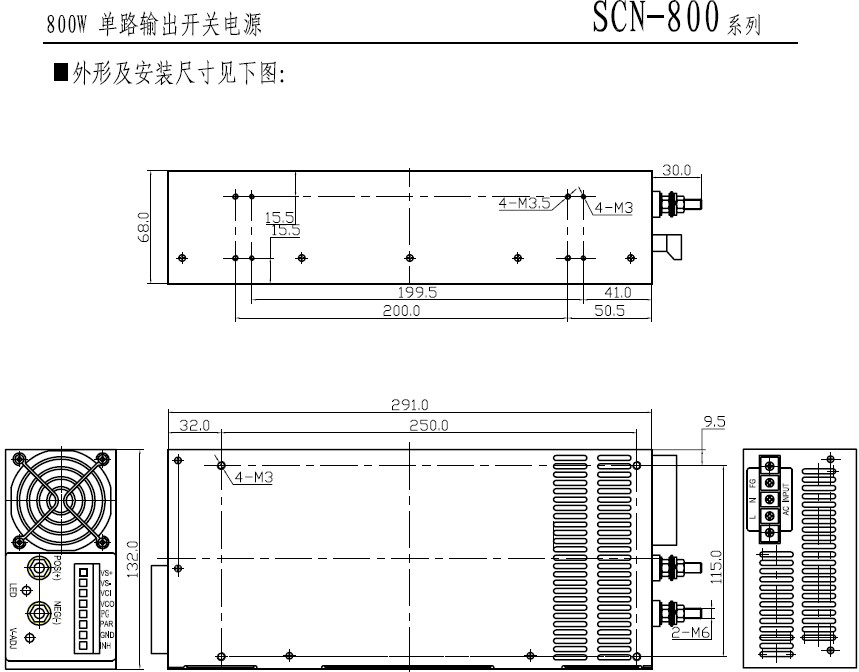

Installation dimensions:
